Product Description

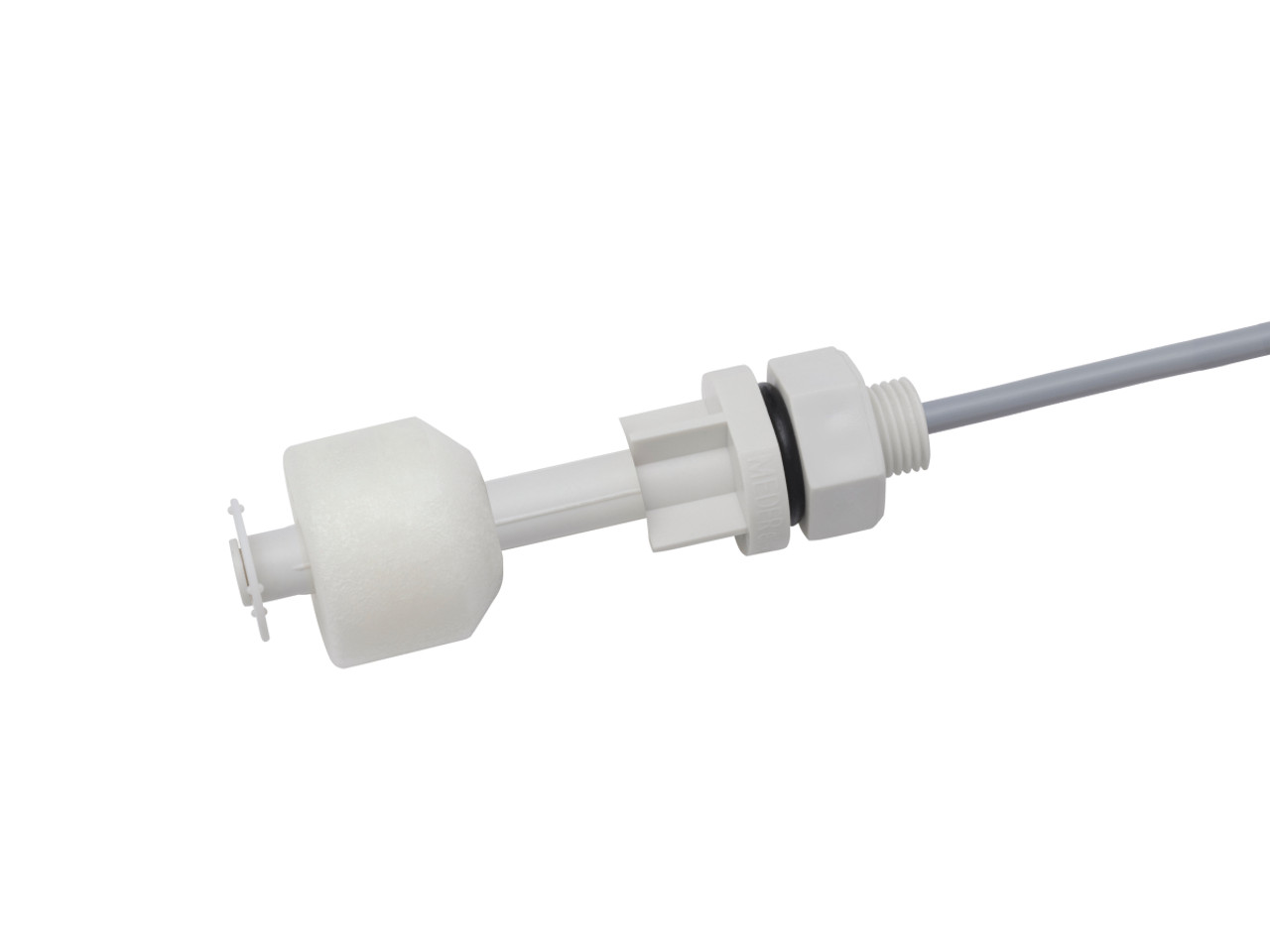

Standex Electronics LS02 Series Liquid Lvl Sensor;Float Switch; PA; 1A SPST-NO; 2.815in; Top/Btm Mnt; Cbl L: 500mm
Liquid Level Sensor • Float Switch • Material: PA • Switches & Contact Form: 1A SPST-NO • Mounting: Top, Bottom • Overall Length (mm): 2.815" (71.5mm) • Cable Length: 500mm
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Liquid Level Sensor |
| Product Sub Category | Float Switch |
| Series | LS02 Series |
| Catalog Part Number | LS02-1A66-PA-500W |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Material | PA |
| Switches & Contact Form | 1A SPST-NO |
| Mounting | Top, Bottom |
| Overall Length (mm) | 2.815" (71.5mm) |
| Cable Length | 500mm |
| Termination | Stripped & Tinned |
Series Features
LS02 Series Liquid Level Sensor
Series DescriptionThe LS02 Series is a compact, single-level vertical mount liquid level sensor designed for reliable fluid detection and control in demanding environments. Available in multiple contact forms—SPST-NO (Form A), SPST-NC (Form B), and SPDT (Form C)—it supports switching up to 100 W, 400 VDC, and 1.0 A, making it suitable for both low and high-power applications.
Constructed from durable materials including PA, PP, and NBR, the LS02 Series offers excellent chemical and thermal resistance. It features IP68 protection up to the screw-in thread and is compatible with a wide range of magnetic float options. Its modular design allows for customization with various cables and connectors, making it ideal for automotive, appliance, HVAC/R, and test & measurement systems.
- Compact vertical mount design for space-efficient installation
- Multiple contact forms (Form A, B, C) for flexible switching configurations
- Rated for up to 100 W, 400 VDC, and 1.0 A for high-power applications
- IP68 protection up to screw-in thread for enhanced environmental sealing
- Constructed from PA, PP, and NBR for chemical and thermal resistance
- Compatible with a wide range of magnetic float options
- Customizable with various cable and connector configurations
Automotive Systems: Fuel, coolant, and brake fluid level monitoring
Home Appliances: Water level detection in dishwashers and washing machines
HVAC/R Systems: Condensate level control and overflow prevention
Test & Measurement Equipment: Fluid level sensing in lab instrumentation
Industrial Controls: Tank level monitoring, pump activation
Medical Devices: Liquid detection in sterilization and diagnostic equipment
