Product Description
Standex Electronics APS Series Angle Position Sensor; Barrel, Aluminum; 8 ~ 32; Analog Voltage
Angle, Linear Position Measuring • Type: Hall Effect Position Sensors • Package / Case: Barrel, Aluminum • Function Type: Angle Position Sensor • Voltage Supply: 8 ~ 32 • Voltage Supply: 8 ~ 32 • Output: Analog Voltage • Termination Style: Wire Leads with Connector
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Position, Proximity, Speed (Modules) |
| Product Sub Category | Angle, Linear Position Measuring |
| Series | APS Series |
| Catalog Part Number | A63-APS360-LACB1E |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Type | Hall Effect Position Sensors |
| Package / Case | Barrel, Aluminum |
| Function Type | Angle Position Sensor |
| Voltage Supply | 8 ~ 32 |
| Output | Analog Voltage |
| Actuator Material | Magnet |
| Operating Temperature | -40 ~ 110 C |
| Termination Style | Wire Leads with Connector |
Series Features
APS Series Angle Position Sensor

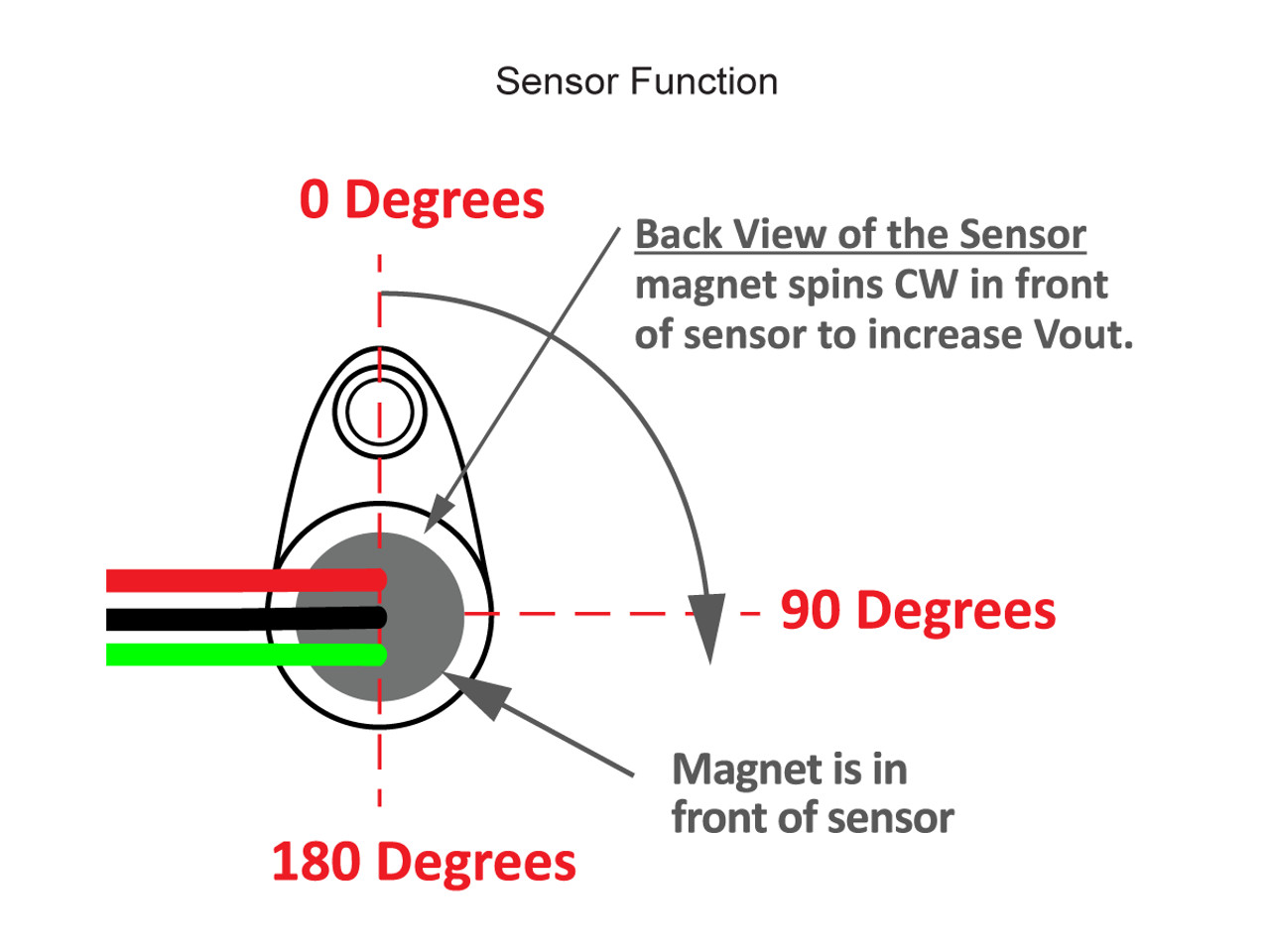

Series DescriptionThe APS Series delivers high-resolution, non-contact angular position sensing for rotating components in demanding environments. Built on Hall Effect Technology and powered by an internal microprocessor, these sensors provide a linear analog output (0–5 V) proportional to the magnet’s angle, available in standard ranges from 45°, 90°, 180°, 270°, 360°, or custom-programmed to your specifications.
Designed for long-term reliability, the APS Series features shock and vibration resistance, wide temperature stability, and wear-free solid-state construction. With flexible housing and connection options, including molded, aluminum, and stainless-steel packages—the APS Series integrates seamlessly into automotive, agricultural, and industrial systems.
- High-resolution angular detection up to 0.36°

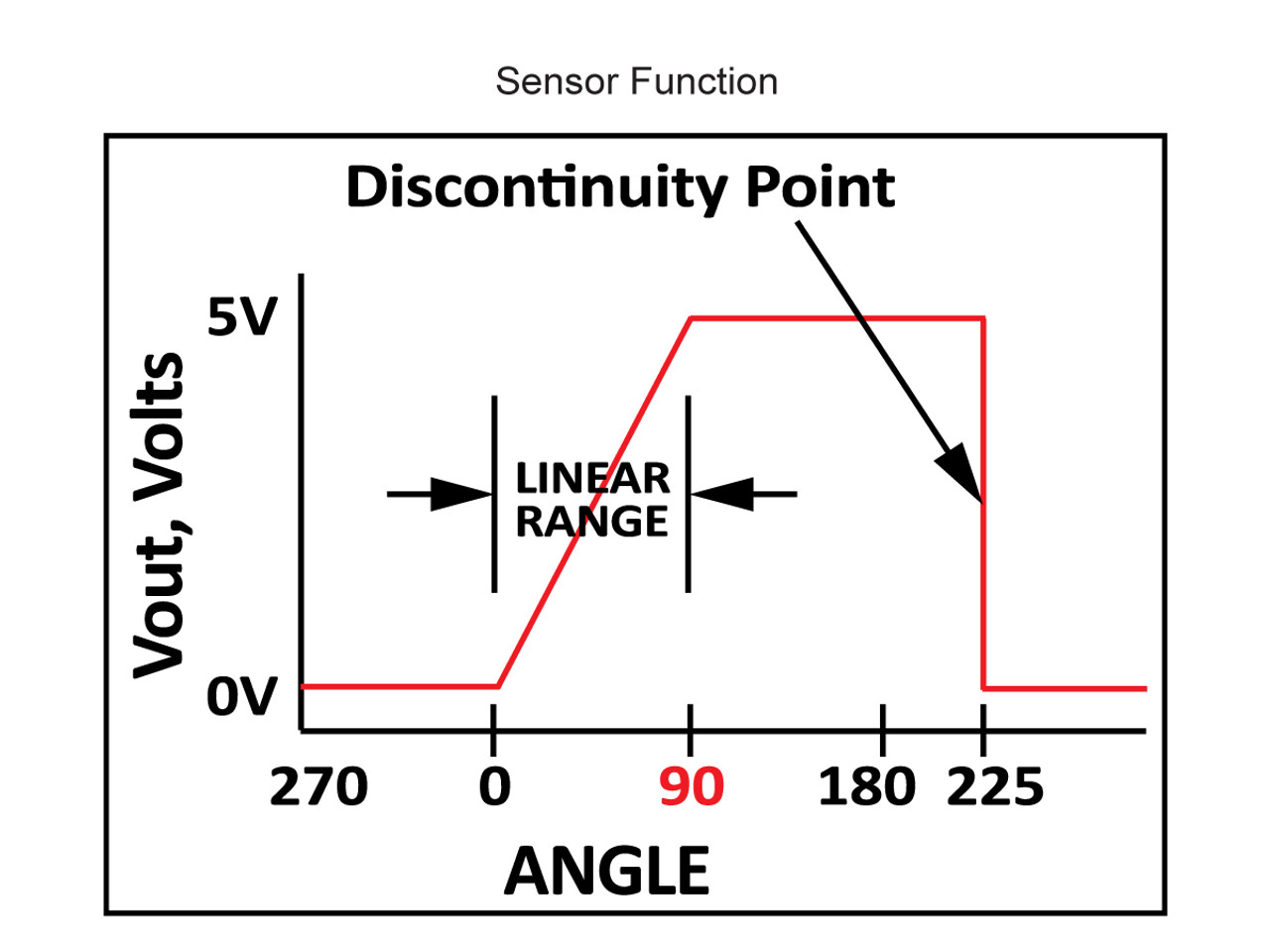

- Linear analog output (0–5 V) over full or limited rotation ranges
- Custom-programmable detection ranges (45°, 90°, 180°, 270°, 360°)
- Shock and vibration resistant for rugged environments
- Non-contact, solid-state design with no moving parts
- Wide temperature stability for consistent performance
- Multiple housing options: molded, aluminum, stainless steel
- Flexible connections: pigtails, free-end wires, integral connectors
- Compact magnet options: raw or bolt-on housings
- Ideal for automotive, agricultural, and industrial applications
Shaft and gear rotation in agricultural equipment
Gear rotation in conveyor systems
Tracking of pedals and lever positions
Position resolution in automation equipment
Providing angular feedback of components in production and testing
Resolving orientation of industrial and agricultural attachments
Monitoring shaft torque
Angular feedback for robotic arms
