To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Schneider Electric |
| Manufacturer Product Number | 70-725-1 |
| Description | Relay Socket; 6-position; Screw Terminal; DIN Rail Mount; 30 A |
| Datasheet | Download Datasheet |

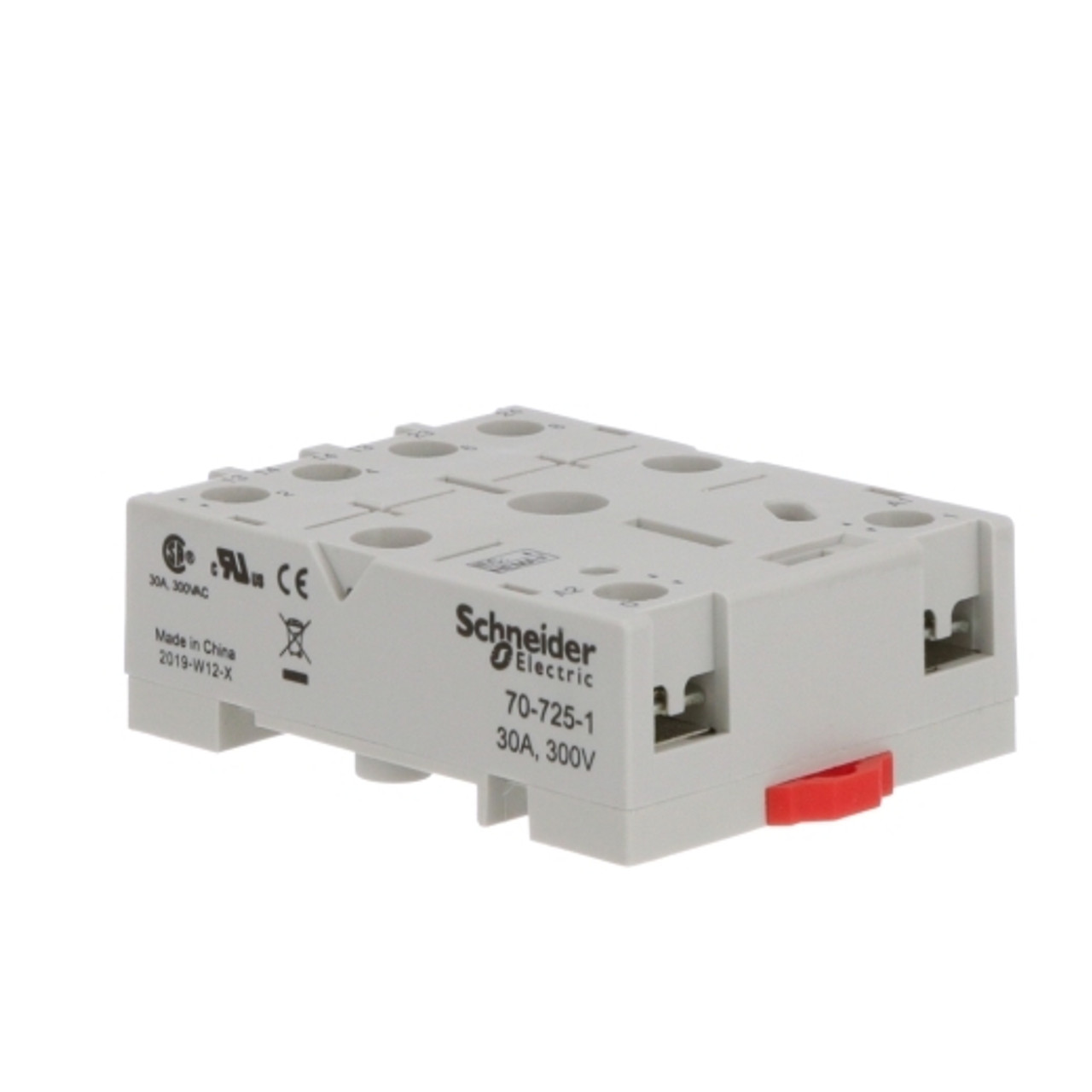

The Schneider Electric 70-725-1 is a relay socket for 725 Relays with plug-in socket mount cover, 6-position, screw terminals, DIN Rail Mount and rated 30 A at 300 V.
The clip that fits it is spring clip 16-725SC.
It is good for -40 to +55 °C.
Its terminals accept up to Solid: 1 x 6 mm² (1 x 10 AWG) or 2 x 0.5...6 mm² (2 x 20...10 AWG); stranded: 1 or 2 x 0.5...6 mm² (20...10 AWG).
| Category | |
| Manufacturer | Schneider Electric |
| For Use With | 725 Relays with plug-in socket mount cover |
| Number of Positions | 6 |
| Termination Style | Screw Terminal |
| Mounting Type | DIN Rail Mount |
| Features | Accepts 70-ASM socket modules |
| Rated Current (A) | 30 |
| Rated Voltage | 300 V |
| Maximum Wire Size | Solid: 1 x 6 mm² (1 x 10 AWG) or 2 x 0.5...6 mm² (2 x 20...10 AWG); stranded: 1 or 2 x 0.5...6 mm² (20...10 AWG) |
| Retaining Clip | Spring clip 16-725SC |
| Operating Temperature (°C) | -40...+55 °C |
| Protection Category | IP 20 |
| Approvals | UL (E43641), CSA (168986), CE, RoHS |
