To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Schneider Electric |
| Manufacturer Product Number | 199AX-8 |
| Description | Power Relay; 2A DPST-NO; 40 A; 24VAC; Screw Terminal |
| Datasheet | Download Datasheet |

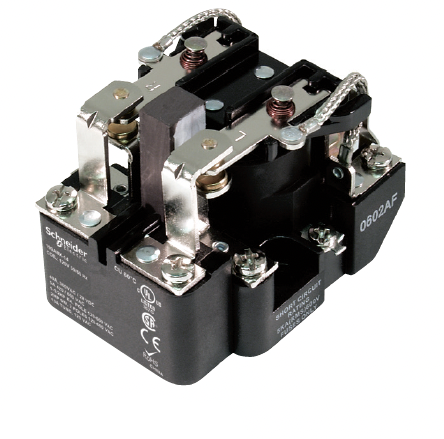

The Schneider Electric 199AX-8 is a power relay with 2A DPST-NO contacts, rated 40 A and switching up to 600V, driven by a 24VAC coil.
It has screw terminals and contacts in Silver Alloy.
| Category | |
| Manufacturer | Schneider Electric |
| Part Status | Discontinued |
| Alternate Part Numbers | W199AX-8 |
| Coil Voltage | 24VAC |
| Contact Configuration | 2A DPST-NO |
| Contact Rating (A) | 40 |
| Switching Voltage | 600V - Max |
| Contact Material | Silver Alloy |
| Coil Resistance (ohm) | 12 |
| Termination Style | Screw Terminal |
| Must Operate Voltage | 20.4 V |
| Must Drop-Out Voltage | 2.4 V |
| Number of Poles | 2 |
| Approvals | UL, CSA, CE |
| Operate Time (ms) | 30 |
| Operating Temperature (°C) | -40...+55 |
| Electrical Life (cycles) | 6,000 |
