To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Schneider Electric |
| Manufacturer Product Number | SSP1A490M7 |
| Description | Solid State Relay; 90 A - 660 V AC; 90…280 V AC; Zero-Crossing; Screw Terminal |
| Datasheet | Download Datasheet |

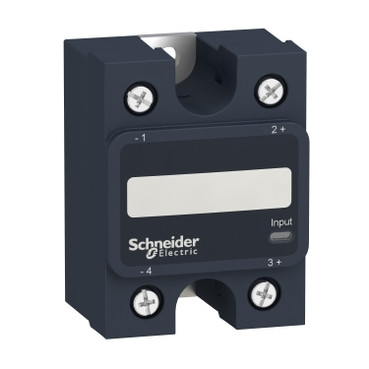

The Schneider Electric SSP1A490M7 is a solid state relay rated 90 A at 660 V AC and switching 48 to 660 V AC, driven by a 90 to 280 V AC input and drawing 5 to 10 mA.
Its SCR output switches on at the zero crossing, which suits lamps, heaters and solenoids and keeps lamp inrush down.
It has panel mounting and screw terminals.
| Category | |
| Manufacturer | Schneider Electric |
| Output Technology | SCR |
| Switch-On Mode | Zero-Crossing |
| Output Rating | 90 A - 660 V AC |
| Switching Voltage | 48…660 V AC |
| Output Type | AC |
| Maximum Peak Current (A) | 1200 |
| Input Voltage | 90…280 V AC |
| Input Current (mA) | 5…10 |
| Input Version | AC |
| Must Drop-Out Voltage | 10 V AC |
| On-State Voltage Drop (V) | 1.15 |
| Operate/Release Time | On 25 ms / off 30 ms |
| Termination Style | Screw Terminal |
| Mounting Type | Panel |
| Protection Category | IP 20 |
| Operating Temperature (°C) | -40…+80 |
| Approvals | UL, CSA, CE, EAC |
