To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Schneider Electric |
| Manufacturer Product Number | RE17LLBM |
| Description | TDR; 0.1 s...100 h; Asymmetrical Flasher; 24-240V AC |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |

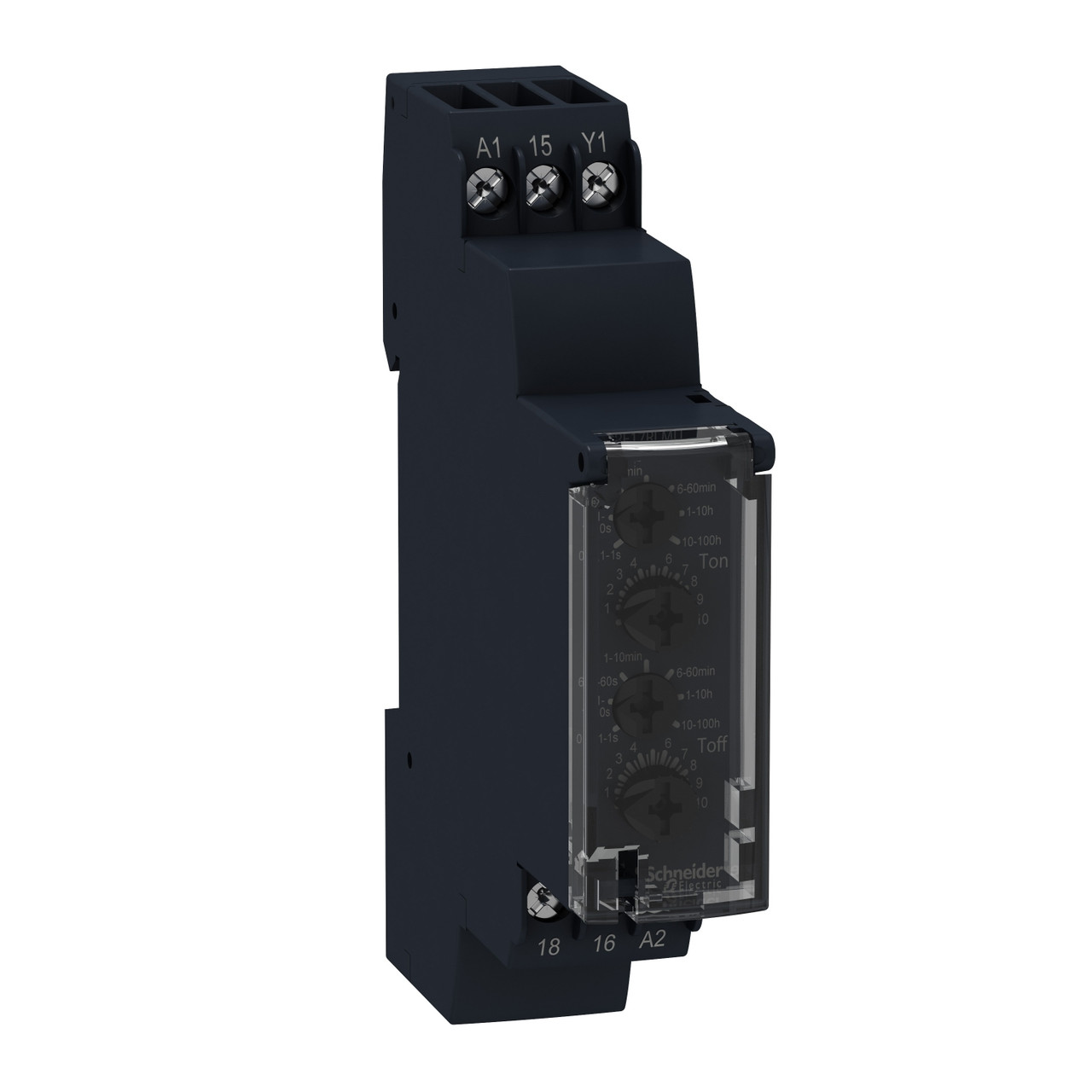

The Schneider Electric RE17LLBM is a time delay relay with 1 Solid State Output output and rated 0.7 A AC (at 20 °C), 0.5 A AC (UL); 250 V AC max, driven by a 24-240V AC input.
It is adjustable from 0.1 s to 100 h and set by a front-panel selector switch.
It offers L Asymmetrical flashing relay (starting pulse-off), Li Asymmetrical flashing relay (starting pulse-on).
It has DIN Rail mounting and screw terminals.
| Category | |
| Manufacturer | Schneider Electric |
| Output Technology | Solid State |
| Timing Function | Asymmetrical Flasher |
| Delay Time | 0.1 s...100 h |
| Time Ranges | 0.1-1 s, 1-10 s, 6-60 s, 1-10 min, 6-60 min, 1-10 h, 10-100 h |
| Timing Adjustment Method | Front-panel selector switch |
| Timing Initiate Method | Input Voltage |
| Available Timing Functions | L Asymmetrical flashing relay (starting pulse-off), Li Asymmetrical flashing relay (starting pulse-on) |
| Contact Configuration | 1 Solid State Output |
| Output Rating | 0.7 A AC (at 20 °C), 0.5 A AC (UL); 250 V AC max |
| Input Voltage | 24-240V AC |
| Termination Style | Screw Terminal |
| Mounting Type | DIN Rail |
| Operating Temperature | -20...+60 °C (-30...+60 °C) |
| Approvals | cULus, CSA, CE, GL |
| Setting Accuracy (%) | ±10% of full scale at 25 °C |
| Repeatability (%) | ±0.5% |
| Start-Up Time | 0.1 s |
| Electrical Life (cycles) | 100,000,000 |
| Input Operating Range | 85-110% of nominal; 50/60 Hz ±5% |
| Rated Power | up to 3 VA at 240 V AC |
