To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Schneider Electric |
| Manufacturer Product Number | W389DCX-2 |
| Description | Power Relay; SPST-NO-DM; 30 A; 12VDC; Flange Mount; QC 0.250" |
| Datasheet | Download Datasheet |

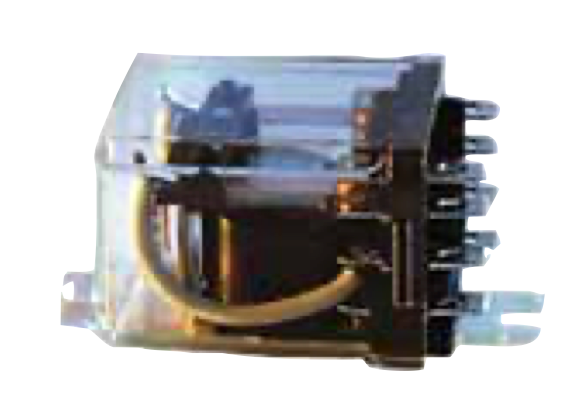

The Schneider Electric W389DCX-2 is a power relay with SPST-NO-DM contacts and rated 30 A, driven by a 12VDC coil.
It has Flange Mounting and 0.250" (6.3mm) quick-connect terminals and contacts in Silver Cadmium Oxide.
| Category | |
| Manufacturer | Schneider Electric |
| Part Status | Discontinued |
| Mounting Type | Flange Mount |
| Coil Voltage | 12VDC |
| Contact Configuration | SPST-NO-DM |
| Contact Rating (A) | 30 |
| Contact Material | Silver Cadmium Oxide |
| Coil Resistance (ohm) | 100 |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Must Operate Voltage | 9.6 V |
| Must Drop-Out Voltage | 1.2 V |
| Number of Poles | 1 |
| Approvals | UR (E43641), CSA (168986), CE |
| Operate Time (ms) | 20 |
| Release Time (ms) | 20 |
| Operating Temperature (°C) | -30...+65 |
| Mechanical Life | 5,000,000 cycles (100,000 cycles) |
