To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Schneider Electric |
| Manufacturer Product Number | W389CX-13 |
| Description | Power Relay; 3C 3PDT; 20 A; 24VDC; Flange Mount; QC 0.250" |
| Datasheet | Download Datasheet |

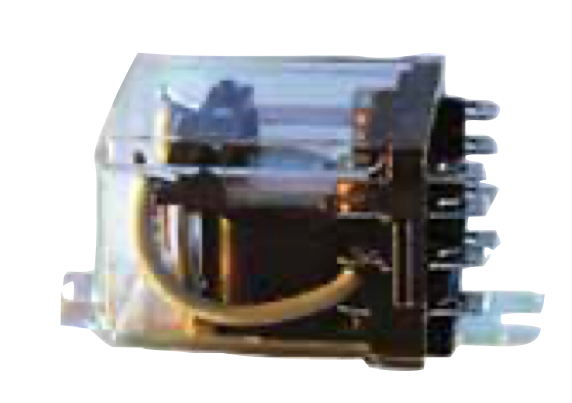

The Schneider Electric W389CX-13 is a power relay with 3C 3PDT contacts and rated 20 A, driven by a 24VDC coil.
It has Flange Mounting and 0.250" (6.3mm) quick-connect terminals and contacts in Silver Cadmium Oxide.
| Category | |
| Manufacturer | Schneider Electric |
| Part Status | Discontinued |
| Mounting Type | Flange Mount |
| Coil Voltage | 24VDC |
| Contact Configuration | 3C 3PDT |
| Contact Rating (A) | 20 |
| Contact Material | Silver Cadmium Oxide |
| Coil Resistance (ohm) | 400 |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Must Operate Voltage | 19.2 V |
| Must Drop-Out Voltage | 2.4 V |
| Number of Poles | 3 |
| Approvals | UR (E43641), CSA (168986), CE |
| Operate Time (ms) | 20 |
| Release Time (ms) | 20 |
| Operating Temperature (°C) | -30...+65 |
| Mechanical Life | 5,000,000 cycles (100,000 cycles) |
