To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Schneider Electric |
| Manufacturer Product Number | W388ACPX-4 |
| Description | Power Relay; 1C SPDT; 15 A; 120VAC; Socketable |
| Datasheet | Download Datasheet |

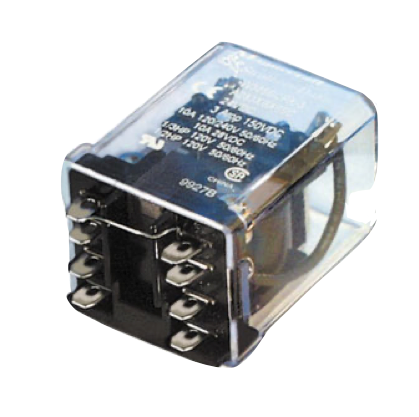

The Schneider Electric W388ACPX-4 is a power relay with 1C SPDT contacts and rated 15 A, driven by a 120VAC coil.
It has Socketable mounting and Plug In, Quick Connect - 0.187" (4.7mm) terminals and contacts in Silver Cadmium Oxide.
| Category | |
| Manufacturer | Schneider Electric |
| Part Status | Discontinued |
| Mounting Type | Socketable |
| Coil Voltage | 120VAC |
| Contact Configuration | 1C SPDT |
| Contact Rating (A) | 15 |
| Contact Material | Silver Cadmium Oxide |
| Coil Resistance (ohm) | 2250 |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Must Operate Voltage | 102 V |
| Must Drop-Out Voltage | 12 V |
| Number of Poles | 1 |
| Approvals | UR (E13224), CSA (168986), CE |
| Operating Temperature (°C) | -30...+50 |
| Mechanical Life | 5,000,000 cycles (100,000 cycles) |
