To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Schneider Electric |
| Manufacturer Product Number | RXM4AB1P7PVS |
| Description | Power Relay; 4C 4PDT; 6 A; 230VAC; DIN Rail/Panel Mount; Screw Terminal |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |

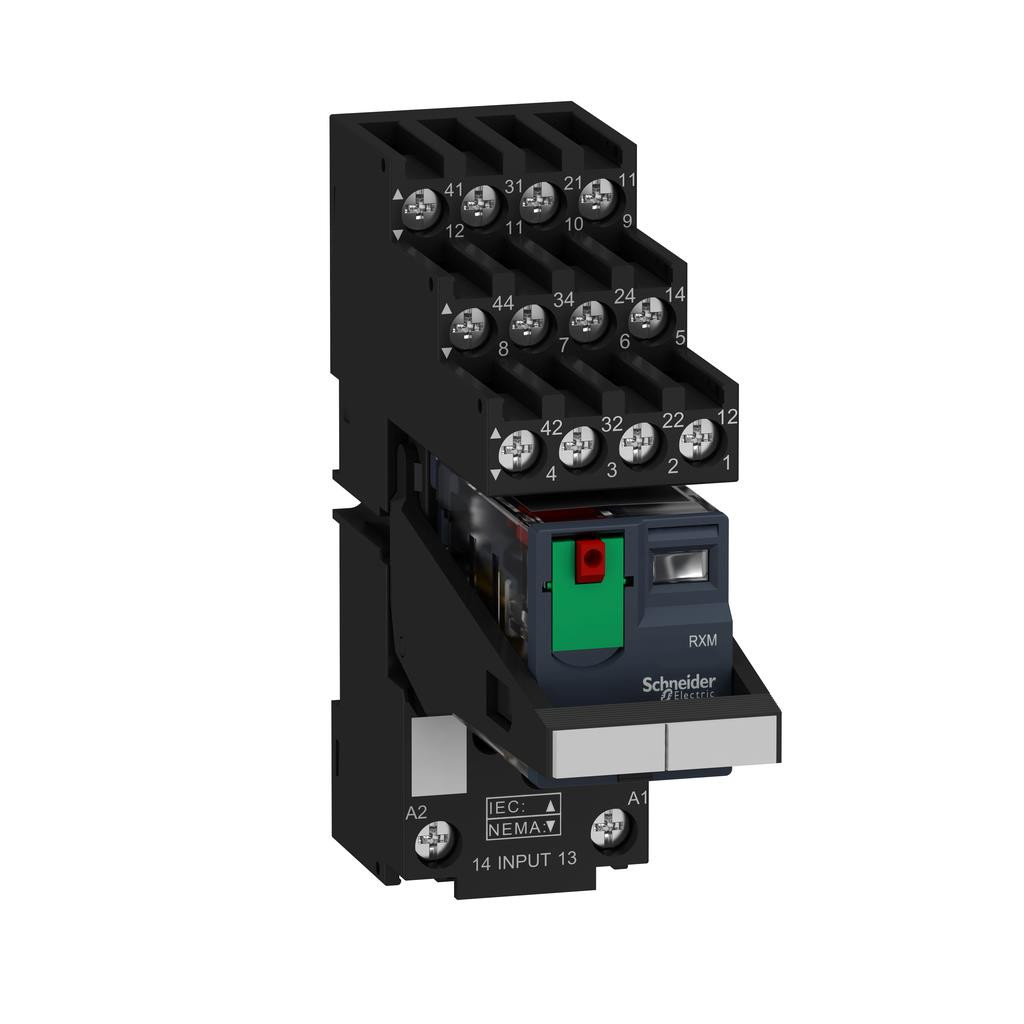

The Schneider Electric RXM4AB1P7PVS is a power relay with 4C 4PDT contacts, rated 6 A and switching up to 250V, driven by a 230VAC coil.
It has DIN Rail/Panel Mounting and screw terminals, contacts in AgNi and is supplied with mechanical indicator, test button, pre-assembled with separate terminal socket.
| Category | |
| Manufacturer | Schneider Electric |
| Mounting Type | DIN Rail/Panel Mount |
| Coil Voltage | 230VAC |
| Contact Configuration | 4C 4PDT |
| Contact Rating (A) | 6 |
| Switching Voltage | 250V - Max |
| Contact Material | AgNi |
| Coil Resistance (ohm) | 15000 |
| Termination Style | Screw Terminal |
| Must Drop-Out Voltage | 69 V |
| Features | Mechanical Indicator, Test Button, Pre-assembled with separate terminal socket |
| Number of Poles | 4 |
| Approvals | UL, CSA, CE, Lloyd's, GOST, IECEE CB Scheme |
| Operate Time (ms) | 20 |
| Release Time (ms) | 20 |
| Operating Temperature (°C) | -40...+55 |
| Mechanical Life | 10,000,000 cycles (100,000 cycles) |
