To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Schneider Electric |
| Manufacturer Product Number | RXG12F7 |
| Description | Power Relay; 1C SPDT; 10 A; 120VAC; Socketable; Blade; LED, Mech Ind, Test Btn |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |

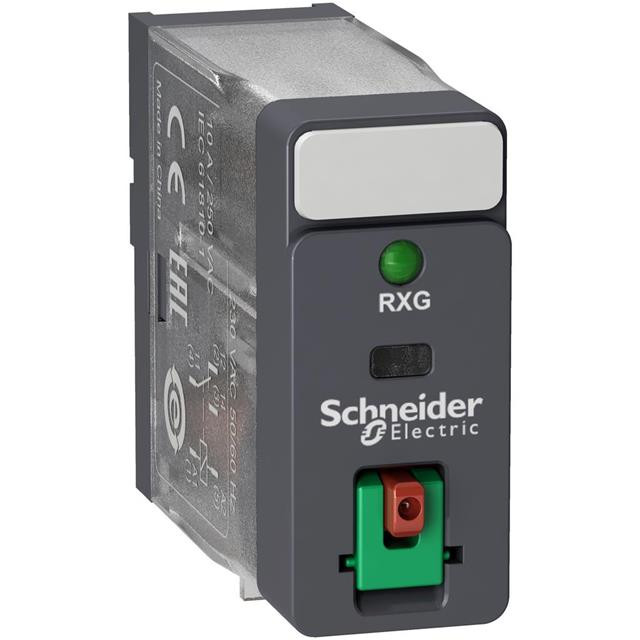

The Schneider Electric RXG12F7 is a power relay with 1C SPDT contacts, rated 10 A and switching up to 250VAC / 30VDC, driven by a 120VAC coil.
It has Socketable mounting and Plug In, Blade terminals, contacts in AgSnO2In2O3 and is supplied with lighted indicator, mechanical indicator, test button.
| Category | |
| Manufacturer | Schneider Electric |
| Mounting Type | Socketable |
| Coil Voltage | 120VAC |
| Contact Configuration | 1C SPDT |
| Contact Rating (A) | 10 |
| Switching Voltage | 250VAC / 30VDC - Max |
| Contact Material | AgSnO2In2O3 |
| Termination Style | Plug In, Blade |
| Must Drop-Out Voltage | 36 V |
| Features | Lighted Indicator, Mechanical Indicator, Test Button |
| Number of Poles | 1 |
| Approvals | UL, EAC, CSA, CE, DNV-GL |
| Operate Time (ms) | 20 |
| Release Time (ms) | 20 |
| Operating Temperature (°C) | -40...+70 |
| Mechanical Life (cycles) | 10,000,000 |
