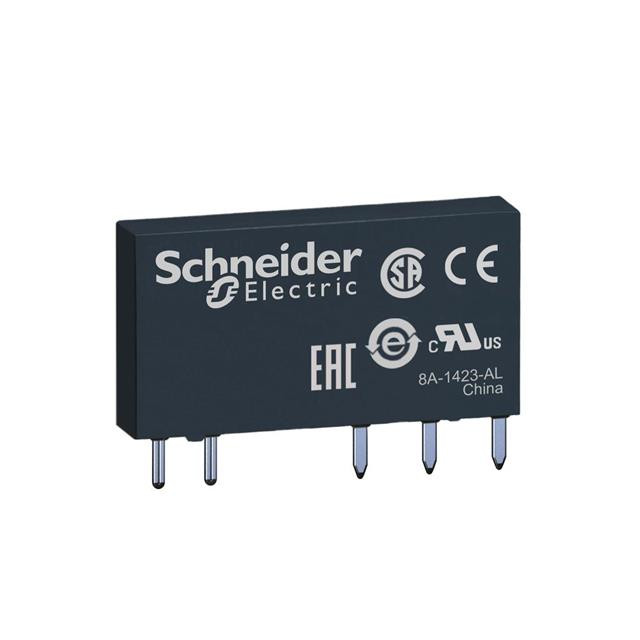

Schneider Electric RSB Series Power Relay; Through Hole; 12VDC; SPDT (1 Form C); 6 A; PC Pin
Power Relay • Mounting Type: Through Hole • Coil Voltage: 12VDC • Contact Form: SPDT (1 Form C) • Contact Rating (Current): 6 A • Coil Type: Non Latching • Termination Style: PC Pin
Product Information
| Manufacturer | Schneider Electric |
| Product Category | Relay |
| Product Sub Category | Power Relay |
| Series | RSB Series |
| Catalog Part Number | RSL1AB4JD |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 277VAC - Max |
| Load - Max Switching | 1662VA |
| Coil Current | 14.2 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 5 ms |
| Release Time | 12 ms |
| Operating Temperature | -40°C ~ 55°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | CSA, EAC, UL |
Series Features
Harmony™ RSB Interface Relays
Series DescriptionHarmony RSB interface relays and sockets provide the optimum combination of robust performance and space saving for the most demanding applications. Relays are rated at 8 A, 12 A, and 16 A (250 Vac / 28 Vdc).
- Optional protection modules for protection against electrical transients
- Optional plastic hold-down ejector clips
- Socket or printed circuit board installation options
