To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Schneider Electric |
| Manufacturer Product Number | RSB2A080BDPV |
| Description | Power Relay; 2C DPDT; 8 A; 24VDC; Screw Terminal; Diode, Lighted Indicator |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |

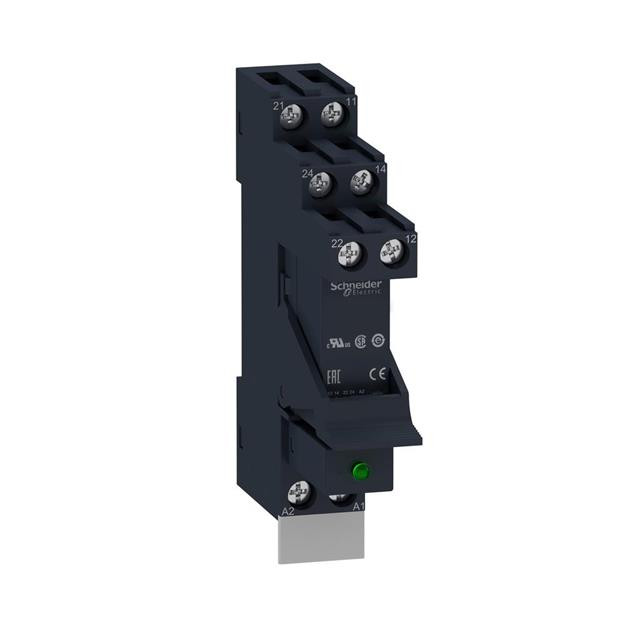

The Schneider Electric RSB2A080BDPV is a power relay with 2C DPDT contacts, rated 8 A and switching up to 300VDC, driven by a 24VDC coil.
It has screw terminals, contacts in AgNi and is supplied with diode, lighted indicator.
| Category | |
| Manufacturer | Schneider Electric |
| Coil Voltage | 24VDC |
| Contact Configuration | 2C DPDT |
| Contact Rating (A) | 8 |
| Switching Voltage | 300VDC - Max |
| Contact Material | AgNi |
| Coil Resistance (ohm) | 1440 |
| Termination Style | Screw Terminal |
| Must Drop-Out Voltage | 2.4 V |
| Features | Diode, Lighted Indicator |
| Number of Poles | 2 |
| Approvals | CE, UL, CSA, EAC |
| Operate Time (ms) | 20 |
| Release Time (ms) | 20 |
| Operating Temperature (°C) | -40...+85 |
| Mechanical Life | 30,000,000 cycles (100,000 cycles) |
