Product Description

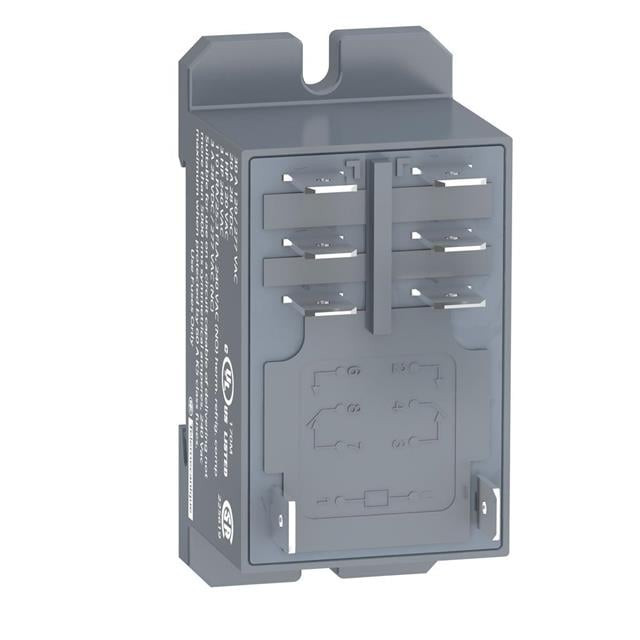

Schneider Electric RPF Series Power Relay; Chassis Mount; 24VAC; 2C DPDT; 25 A; Quick Connect - Multiple Sizes
Power Relay • Mounting Type: Chassis Mount • Coil Voltage: 24VAC • Contact Form: 2C DPDT • Contact Rating (Current): 25 A • Coil Type: Non Latching • Termination Style: Quick Connect - Multiple Sizes
Product Information
| Manufacturer | Schneider Electric |
| Product Category | Relay |
| Product Sub Category | Power Relay |
| Series | RPF Series |
| Catalog Part Number | RPF2BB7 |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Type | Chassis Mount |
| Coil Voltage | 24VAC |
| Contact Form | 2C DPDT |
| Contact Rating (Current) | 25 A |
| Switching Voltage | 250VAC, 28VDC - Max |
| Load - Max Switching | 6250VA, 700W |
| Coil Current | 141.2 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - Multiple Sizes |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | - |
| Must Release Voltage | 3.6 VAC |
| Operate Time | 25 ms |
| Release Time | 25 ms |
| Operating Temperature | -40°C ~ 55°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | CE, CSA, GOST, UL |
Series Features
Harmony™ RPF Power Relays
Series DescriptionHarmony RPF power relays respond to the most demanding applications up to 30 A
- UL Listed
- Sealed construction
- Motor load ratings: 1 hp @ 120 Vac / 3 hp @ 240 Vac (N/O contacts only)
- DIN rail and panel mounting capability
- Short circuit rating of 5,000 A rms @ 3 hp, 240 Vac (N/O contacts only)
