To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Schneider Electric |
| Manufacturer Product Number | RM10TA00N |
| Description | Phase Monitor Relay; 3-Phase; 208...480 V AC; SPDT; 5 A; 1250 VA; 35 mm DIN rail |
| Datasheet | Download Datasheet |

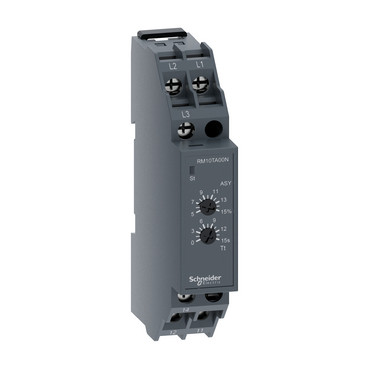

The Schneider Electric RM10TA00N is a 17.5 mm phase monitor relay with 1 Form C (SPDT) output and rated 5 A; 1250 VA, driven by a 208 to 480 V AC input.
It watches all three phases for phase sequence, phase failure detection, asymmetry.
It has 35 mm DIN rail mounting and screw terminals.
| Category | |
| Manufacturer | Schneider Electric |
| Monitoring Function | Phase sequence, phase failure detection, asymmetry |
| Number of Phases | 3-Phase |
| Input Voltage | 208...480 V AC |
| Input Operating Range | 183...528 V AC |
| Phase Unbalance Trip | Adjustable 5...15% of selected Un |
| Trip Delay - Unbalance | 0...15 s adjustable |
| Status Indicator | Green LED: ST (status) |
| Contact Configuration | 1 Form C (SPDT) |
| Output Rating | 5 A; 1250 VA |
| Number of Poles | 1 |
| Mounting Type | 35 mm DIN rail |
| Termination Style | Screw Terminal |
| Module Width (mm) | 17.5 |
| Dimensions | 90 x 17.5 x 58.5 mm (3.5 x 0.7 x 2.3 in), H x W x D |
| Operating Temperature (Storage) | -15...+60 °C (-40...+70 °C) |
| Mechanical Life | 10,000,000 (100,000) |
| Approvals | cULus, CCC, UKCA |
