| Manufacturer | Schneider Electric |
| Manufacturer Product Number | RE22R2MJU |
| Description | TDR; 0.1 s...100 h; Multi-Function; 12V AC/DC; 2C DPDT |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |

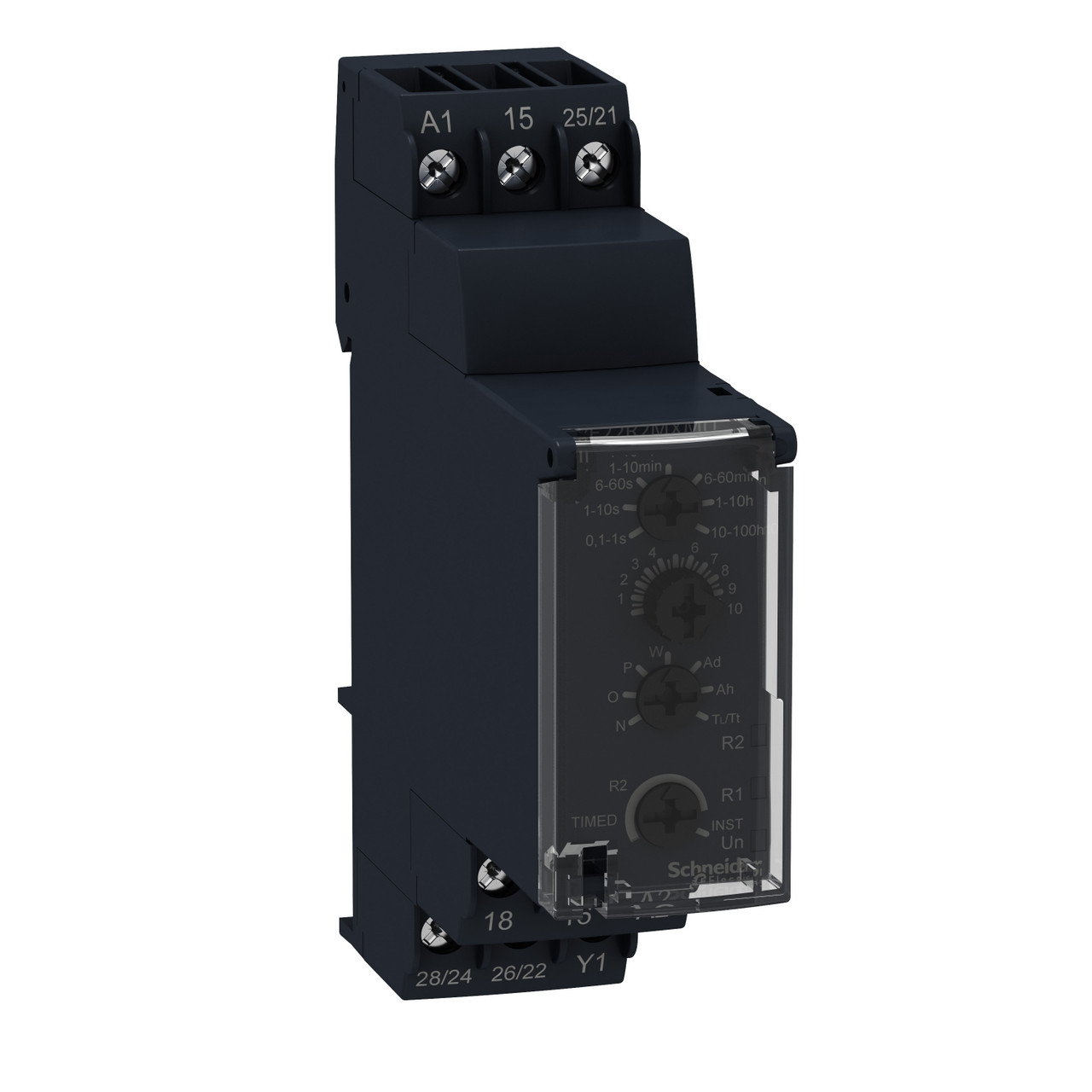

The Schneider Electric RE22R2MJU is a time delay relay with 2C DPDT output and rated 8 A at 250 V max; switching capacity 2000 VA, driven by a 12V AC/DC input.
It is adjustable from 0.1 s to 100 h and set by a rotary knob.
It offers A Power on-delay relay, Ac On-delay and off-delay relay w/ control signal, At Power on-delay relay w/ pause/summation (Y1), B Single interval relay w/ control signal, Bw Double interval relay w/ control signal, C Off-delay relay w/ control signal, D Symmetrical flashing relay (starting pulse-off), Di Symmetrical flashing relay (starting pulse-on), H Interval relay, Ht Interval relay w/ pause/summation (Y1).
It is started by applying the supply or a control signal, depending on the function.
Build option: test button; Second output selectable timed or instantaneous.
It has DIN Rail mounting and screw terminals.
| Category | |
| Manufacturer | Schneider Electric |
| Output Technology | Electromechanical Relay |
| Timing Function | Multi-Function |
| Delay Time | 0.1 s...100 h |
| Time Ranges | 0.1-1 s, 1-10 s, 6-60 s, 1-10 min, 6-60 min, 1-10 h, 10-100 h |
| Timing Adjustment Method | Rotary knob |
| Options | Test button; Second output selectable timed or instantaneous |
| Timing Initiate Method | Input Voltage or Control Signal, by function |
| Available Timing Functions | A Power on-delay relay, Ac On-delay and off-delay relay w/ control signal, At Power on-delay relay w/ pause/summation (Y1), B Single interval relay w/ control signal, Bw Double interval relay w/ control signal, C Off-delay relay w/ control signal, D |
| Status Indicator | Green LED flashing: timing in progress; Green LED steady: power ON; Yellow LED: relay energised |
| Contact Configuration | 2C DPDT |
| Output Rating | 8 A at 250 V max; switching capacity 2000 VA |
| Input Voltage | 12V AC/DC |
| Termination Style | Screw Terminal |
| Mounting Type | DIN Rail |
| Operating Temperature | -20...+60 °C (-30...+60 °C) |
| Approvals | cULus, CSA, CE, CCC, GL, EAC, RCM |
| Setting Accuracy (%) | ±10% of full scale at 25 °C |
| Repeatability (%) | ±0.5% |
| Start-Up Time | 0.1 s |
| Mechanical Life | 10,000,000 cycles (100,000 cycles) |
| Input Operating Range | 90-120% of nominal; 50/60 Hz ±5% |
| Rated Power | 1.2 VA at 12 V AC / 0.5 W at 12 V DC |
