To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Schneider Electric |
| Manufacturer Product Number | RE17RMMW |
| Description | Time Delay Relay; 0.1 s...100 h; Multi-Function; 12-240V AC/DC; 1C SPDT |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |

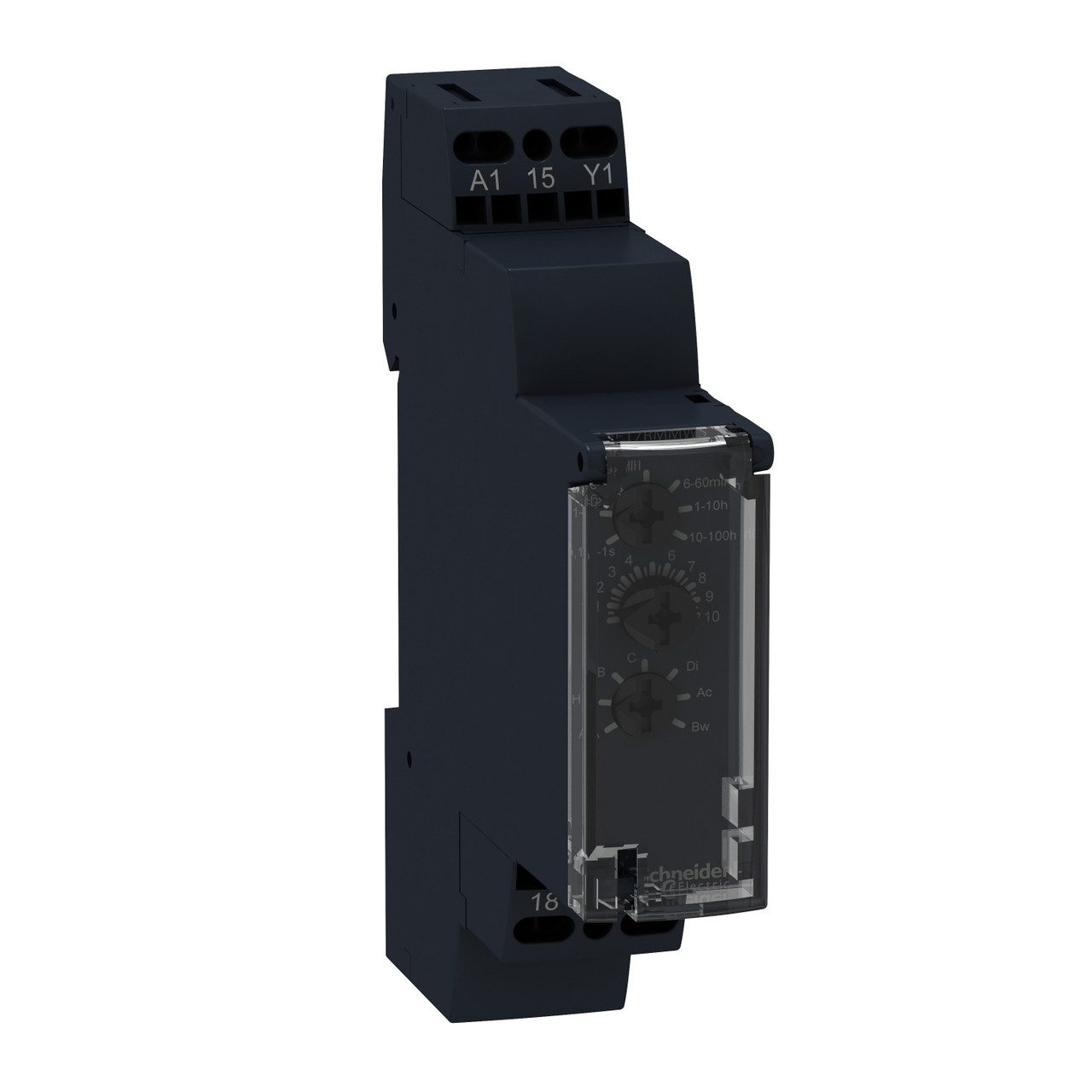

The Schneider Electric RE17RMMW is a time delay relay with 1C SPDT output and rated 8 A AC/DC at 250 V AC max; switching capacity 2000 VA, driven by a 12-240V AC/DC input.
It is adjustable from 0.1 s to 100 h and set by a front-panel selector switch.
It offers A Power on-delay relay, Ac On-delay and off-delay relay w/ control signal, At Power on-delay relay w/ pause/summation (Y1), B Single interval relay w/ control signal, Bw Double interval relay w/ control signal, C Off-delay relay w/ control signal, D Symmetrical flashing relay (starting pulse-off), Di Symmetrical flashing relay (starting pulse-on), H Interval relay, Ht Interval relay w/ pause/summation (Y1).
It is started by applying the supply or a control signal, depending on the function.
It has DIN Rail mounting and screw terminals.
| Category | |
| Manufacturer | Schneider Electric |
| Output Technology | Electromechanical Relay |
| Timing Function | Multi-Function |
| Delay Time | 0.1 s...100 h |
| Time Ranges | 0.1-1 s, 1-10 s, 6-60 s, 1-10 min, 6-60 min, 1-10 h, 10-100 h |
| Timing Adjustment Method | Front-panel selector switch |
| Timing Initiate Method | Input Voltage or Control Signal, by function |
| Available Timing Functions | A Power on-delay relay, Ac On-delay and off-delay relay w/ control signal, At Power on-delay relay w/ pause/summation (Y1), B Single interval relay w/ control signal, Bw Double interval relay w/ control signal, C Off-delay relay w/ control signal, D |
| Status Indicator | LED indicator on steady: relay energised, no timing in progress; LED indicator 80 % ON and 20 % OFF flashing: timing in progress; LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L) |
| Contact Configuration | 1C SPDT |
| Output Rating | 8 A AC/DC at 250 V AC max; switching capacity 2000 VA |
| Input Voltage | 12-240V AC/DC |
| Termination Style | Screw Terminal |
| Mounting Type | DIN Rail |
| Operating Temperature | -20...+60 °C (-30...+60 °C) |
| Approvals | cULus, CSA, CE, GL |
| Setting Accuracy (%) | ±10% of full scale at 25 °C |
| Repeatability (%) | ±0.5% |
| Start-Up Time | 0.1 s |
| Mechanical Life | 10,000,000 cycles (100,000 cycles) |
| Input Operating Range | 85-110% of nominal; 50/60 Hz ±5% |
| Rated Power | up to 3 VA at 240 V AC / 1.5 W at 240 V DC |
