To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Schneider Electric |
| Manufacturer Product Number | RM22JA31MR |
| Description | Current Monitor Relay; 4 mA...1 A AC/DC, 50/60 Hz; 24...240 V AC/DC, 50/60 Hz |
| Datasheet | Download Datasheet |

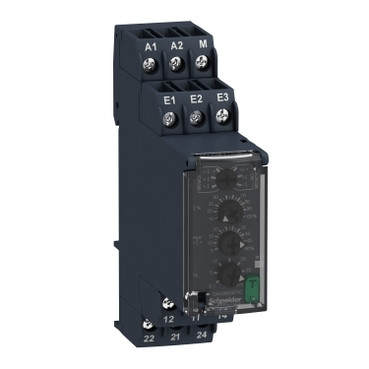

The Schneider Electric RM22JA31MR is a 22.5 mm current monitor relay with 2 Form C (DPDT) output and rated 8 A, 250 V AC max; 2000 VA, driven by a 24 to 240 V AC/DC, 50/60 Hz input.
It watches the monitored current for overcurrent or undercurrent detection, overcurrent or undercurrent in window mode.
The current is sensed by a direct input; 2.5 ω (E1-M), 0.5 ω (E2-M), 0.1 ω (E3-M) across terminals.
Its trip point adjusts anywhere across 4 mA to 1 A AC/DC, 50/60 Hz.
It begins sensing 300 ms after power is applied.
It trips after 0.1 to 30 s (adjustable).
It has 35 mm DIN rail mounting and screw terminals.
