Product Description

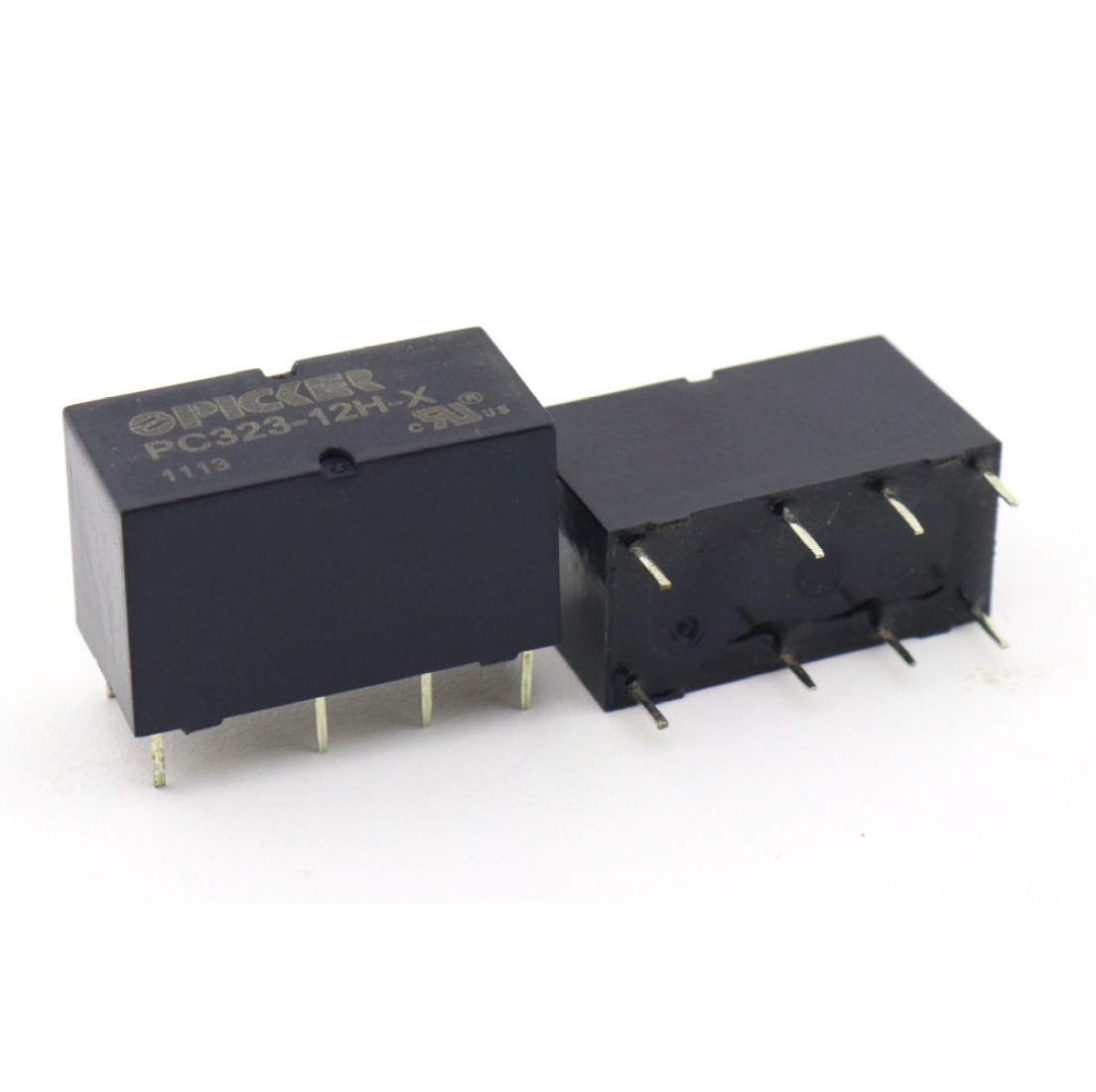

Description: Signal Relays • Coil Voltage: 12 VDC • Contact Configuration: 2C DPDT(B-M) (Bifurcated) • Contact Current: 2 A • Coil Type: Single Side Stable • Mounting : PC Pin • Contact Material: AgNi+Au (Clad) • Sensitivity: 450 mW
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 12 VDC |
| Contact Configuration | 2C DPDT(B-M) (Bifurcated) |
| Contact Current | 2 A |
| Coil Type | Single Side Stable |
| Mounting | PC Pin |
| Contact Material | AgNi+Au (Clad) |
| Sensitivity | 450 mW |
| Maximum Switching Power | 60W 125 VA |
| Maximum Switching Voltage | 220 VDC 250 VAC |
| Maximum Switching Current | 2A |
| Min. Switching Load | 0.01 mA @10mV |
| Initial Contact Resistance | 50 m? max. |
| Service Life | Mechanical 2 x 105 operations Electrical 1 x 108 operations |
| Operate Time | 4.5 ms. Max. |
| Release Time | 1.5 ms. Max. |
| Insulation Resistance | 100M? min. at 500 VDC |
| Dielectric Strength | 1,000 VAC, 1 min, Between Open Contacts 1,000 VAC, 1 min, Between Coil and Contacts 1,000 VAC, 1 min, Between Contacts Poles |
| Surge Withstand Voltage | 1,500 V, Between Open Contacts 1,500 V, Between Coil and Contacts 1,500 V, Between Contacts Poles |
| Power Consumption | 150 mW, 200 mW, 450 mW |
| Terminal Strength | 5N |
| Solderability | 260oC for 5 seconds |
| Temperature Range | -40°C ~90°C(-40°F ~ 194°F) (-40°C ~80°C for0.3W,0.45WCoil) |
| Shock Resistance | Functional 100 m/s2 11 ms Survival 1,000 m/s2 6 ms |
| Vibration Resistance | Functional 10 Hz - 55 Hz Double Amplitude 1.5 mm Survival 10 Hz - 55 Hz Double Amplitude 5 mm |
| Series Features |
| PC323 Series 1 Amp Subminiature PCB Telecom Relay With Bifurcated Contacts |
