To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Picker Components |
| Manufacturer Product Number | PC312-24H-X |
| Description | Power Relay; 1C SPDT; 3 A; 24VDC; Non Latching; Through Hole; PC Pin |
| Datasheet | Download Datasheet |

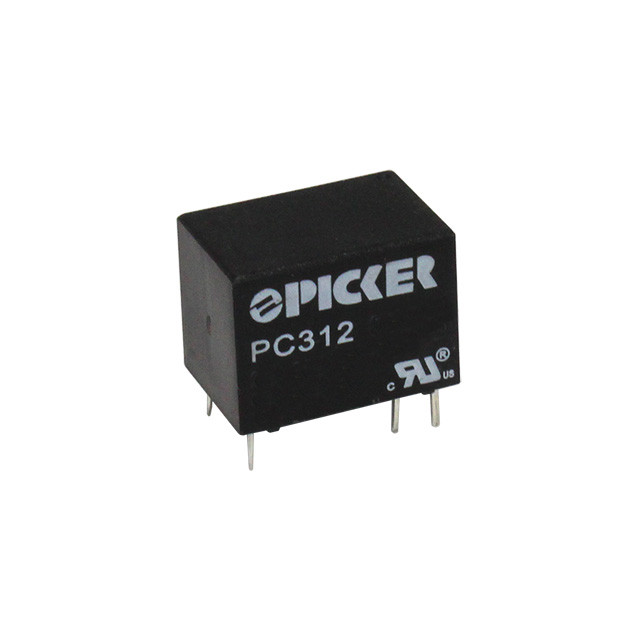

The Picker Components PC312-24H-X is a power relay with 1C SPDT contacts rated 3 A, switching up to 300VAC, 48VDC. It runs on a 24VDC coil (non-latching).
Mounting: through hole, PC pin terminals. Contact material: AgNi + Au.
Coil current 8.33 mA, resistance 2880 Ω. Must operate at 18 V max and release at 2.4 V min. Operate time 5 ms, release time 5 ms.
Mechanical life 10,000,000 operations, electrical life 100,000 at rated load. Operating temperature -40 to +85 °C; storage -40 to +155 °C. Approvals: UL, CUL (E86876).
| Category | |
| Manufacturer | Picker Components |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Configuration | 1C SPDT |
| Contact Rating (A) | 3 |
| Switching Voltage | 300VAC, 48VDC |
| Contact Material | AgNi + Au |
| Coil Current (mA) | 8.33 |
| Coil Resistance (ohm) | 2880 |
| Coil Type | Non Latching |
| Termination Style | PC Pin |
| Must Operate Voltage | 18 V |
| Must Drop-Out Voltage | 2.4 V |
| Number of Poles | 1 |
| Approvals | UL, CUL (E86876) |
| Operate Time (ms) | 5 |
| Release Time (ms) | 5 |
| Operating Temperature | -40...+85 °C (-40...+155) |
| Mechanical Life | 10,000,000 cycles (100,000 cycles) |
