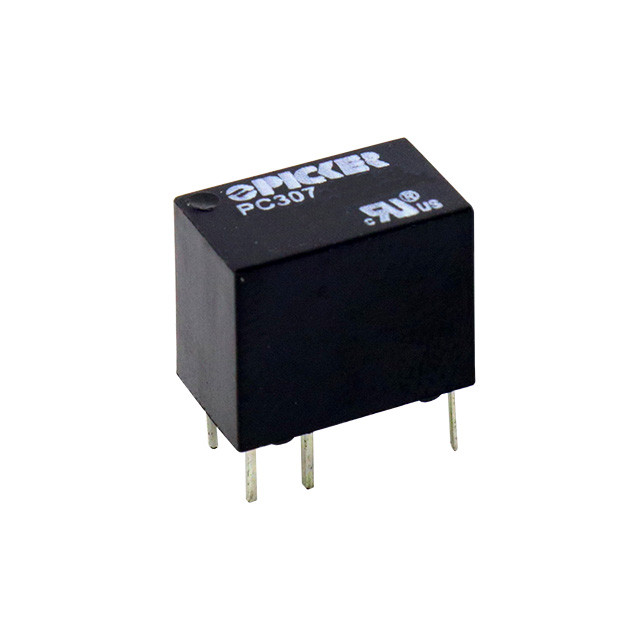

Product Description
Description: Signal Relays • Coil Voltage: 3 VDC • Contact Configuration: 1C SPDT • Contact Current: 2 A • Coil Type: Single Side Stable • Mounting : PC Pin • Contact Material: Ag + Au (Clad) • Coil Power: 0.20W
| Product Information | | Resources |
| Manufacturer | Picker | | Product Category | Relay | | Product Sub Category | Signal Relays | | Series | PC307 Series |
| | |
Product Attribute
| Attribute Value
|
| Coil Voltage | 3 VDC |
| Contact Configuration | 1C SPDT |
| Contact Current | 2 A |
| Coil Type | Single Side Stable |
| Mounting | PC Pin |
| Contact Material | Ag + Au (Clad) |
| Coil Power | 0.20W |
| Maximum Switching Power | 30W |
| Maximum Switching Voltage | 125VAC, 60VDC |
| Maximum Switching Current | 2A |
| Material | Ag +Au |
| Initial Contact Resistance | 50 m? max. |
| Service Life | Mechanical 1 x 107 operations
Electrical 1 x 105 operations |
| Insulation Resistance | 100M? min. at 500 VDC |
| Dielectric Strength | 500V rms, between coil & contacts
500V rms, between contacts |
| Power Consumption | .15W, .20W |
| Terminal Strength | 5N |
| Solderability | 260°C 5 s ± 0.5 s |
| Operating Temperature | -40oC to 85oC |
| Storage Temperature | -40oC to 155oC |
| Shock Resistance | 100 m/s2 11 ms |
| Vibration Resistance | 10-40 Hz double amplitude 3.3mm |
| PC307 Series 1 Amp Ultraminiature PCB Telecom Relay |
| Series Description: |
- Ultraminiature Design
- Very Light Weight
- Contact Capacity from 1mA to 1A
- Meets FCC Part 68 Voltage Surge
- High Sensitivity, 150mW Norminal Power
- .200” 10 Pin DIL Package
|
RoHS Compliant
