Product Description
Description: Signal Relays • Coil Voltage: 9 VDC • Contact Configuration: 2C DPDT (Bifurcated) • Contact Current: 1 A • Coil Type: Single Coil Latching • Mounting : PC Pin
Product Information | Resources |
|
|
Specifications |
Product Attribute | Attribute Value |
Coil Voltage | 9 VDC |
Contact Configuration | 2C DPDT (Bifurcated) |
Contact Current | 1 A |
Coil Type | Single Coil Latching |
Mounting | PC Pin |
Maximum Switching Power | 30W |
Maximum Switching Voltage | 250VAC, 48VDC |
Maximum Switching Current | 1A |
Material | AgPd, Au Plated |
Initial Contact Resistance | 50 m? max. |
Service Life | Mechanical 1 x 107 operations Electrical 1 x 105 operations |
Insulation Resistance | 100M? min. at 500 VDC |
Dielectric Strength | 1500V rms, between coil & contacts 1000V rms, between contacts 1000V rms, between poles |
Initial Surge Voltage | 2500V (Telcordia, 2X10us), between coil & contacts 1500V (FCC part 68, 10x60us), between contacts |
Power Consumption | .14W, .20W, .30W, .40W |
Terminal Strength | 5N |
Solderability | 260°C 5 s ± 0.5 s |
Operating Temperature | -40oC to 85oC |
Storage Temperature | -40oC to 155oC |
Shock Resistance | 500 m/s2 11 ms |
Vibration Resistance | 10-40 Hz double amplitude 3mm |
Series Features |

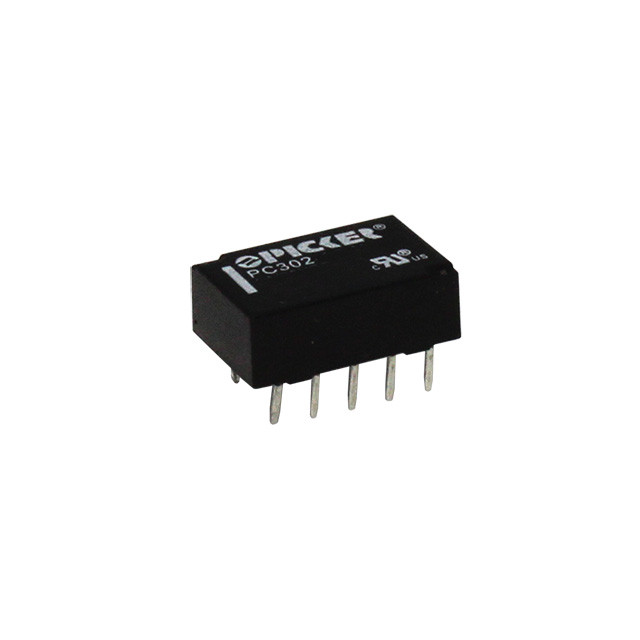

PC302 Series Microminiature 1 Amp Signal Relay |
Series Description: |
|
