To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Picker Components |
| Manufacturer Product Number | PC302-12-X |
| Description | Signal Relay; 2C DPDT; 1 A; 12VDC; Non Latching; Through Hole; PC Pin |
| Datasheet | Download Datasheet |

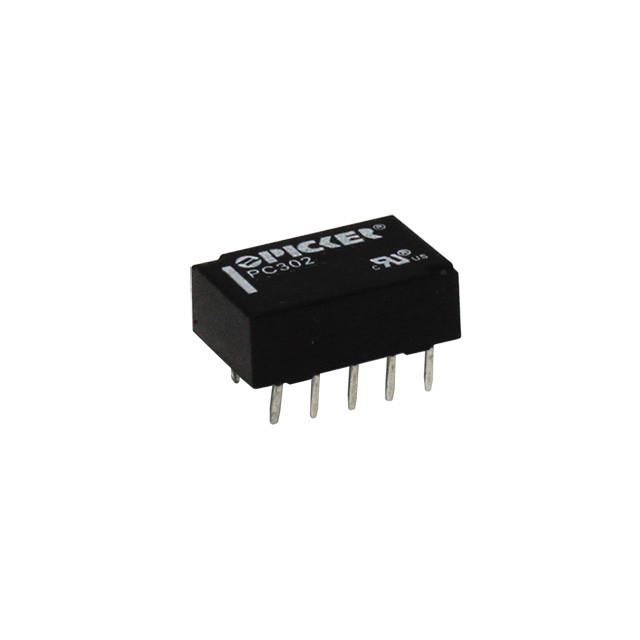

The Picker Components PC302-12-X is a signal relay with 2C DPDT contacts rated 1 A, switching up to 250VAC, 48VDC. It runs on a 12VDC coil (non-latching).
Mounting: through hole, PC pin terminals. Contact material: AgPd, Au Plated. Options on this part: bifurcated contacts, low profile.
Coil current 11.7 mA, resistance 1028 Ω. Must operate at 9 V max and release at 1.2 V min. Operate time 4 ms, release time 4 ms.
Mechanical life 10,000,000 operations, electrical life 100,000 at rated load. Operating temperature -40 to +85 °C; storage -40 to +155 °C. Approvals: UL, CUL (E86876).
| Category | |
| Manufacturer | Picker Components |
| Contact Configuration | 2C DPDT |
| Number of Poles | 2 |
| Contact Rating (A) | 1 |
| Contact Material | AgPd, Au Plated |
| Switching Voltage | 250VAC, 48VDC |
| Coil Voltage | 12VDC |
| Coil Current (mA) | 11.7 |
| Coil Resistance (ohm) | 1028 |
| Coil Type | Non Latching |
| Must Operate Voltage | 9 V |
| Must Drop-Out Voltage | 1.2 V |
| Termination Style | PC Pin |
| Mounting Type | Through Hole |
| Features | Bifurcated Contacts, Low Profile |
| Operate Time (ms) | 4 |
| Release Time (ms) | 4 |
| Operating Temperature | -40...+85 °C (-40...+155) |
| Mechanical Life | 10,000,000 cycles (100,000 cycles) |
| Approvals | UL, CUL (E86876) |
