Product Description
Description: Signal Relays • Coil Voltage: 12 VDC • Contact Configuration: 2C DPDT (Bifurcated) • Contact Current: 1 A • Coil Type: Single Coil Latching • Mounting : PC Pin
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 12 VDC |
| Contact Configuration | 2C DPDT (Bifurcated) |
| Contact Current | 1 A |
| Coil Type | Single Coil Latching |
| Mounting | PC Pin |
| Maximum Switching Power | 30W |
| Maximum Switching Voltage | 250VAC, 48VDC |
| Maximum Switching Current | 1A |
| Material | AgPd, Au Plated |
| Initial Contact Resistance | 50 m? max. |
| Service Life | Mechanical 1 x 107 operations Electrical 1 x 105 operations |
| Insulation Resistance | 100M? min. at 500 VDC |
| Dielectric Strength | 1500V rms, between coil & contacts 1000V rms, between contacts 1000V rms, between poles |
| Initial Surge Voltage | 2500V (Telcordia, 2X10us), between coil & contacts 1500V (FCC part 68, 10x60us), between contacts |
| Power Consumption | .14W, .20W, .30W, .40W |
| Terminal Strength | 5N |
| Solderability | 260°C 5 s ± 0.5 s |
| Operating Temperature | -40oC to 85oC |
| Storage Temperature | -40oC to 155oC |
| Shock Resistance | 500 m/s2 11 ms |
| Vibration Resistance | 10-40 Hz double amplitude 3mm |
| Series Features |

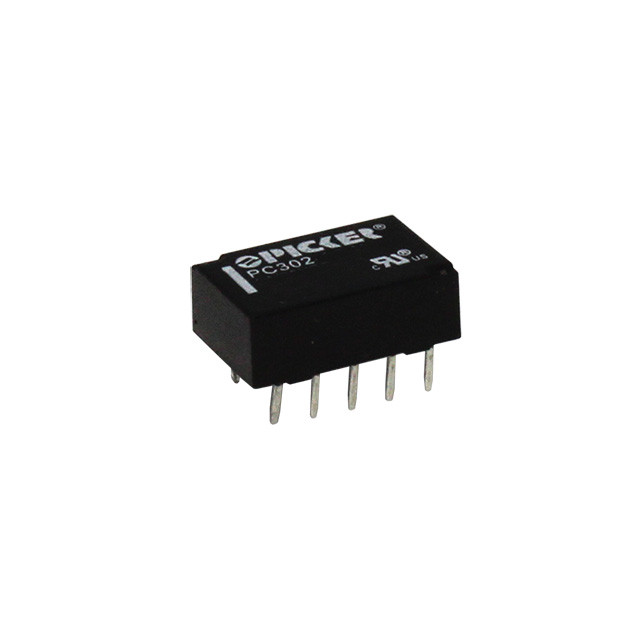

| PC302 Series Microminiature 1 Amp Signal Relay |
