Product Description
Description: Power Relays • Coil Voltage: 220 VAC • Contact Configuration: 1A SPST-NO • Contact Current: 40 A • Coil Type: Single Side Stable • Mounting Type: PCB & QC • Enclosure: Dust Cover • Insulation System: Class F • Contact Material: AgSnO2In2O3 • IP67 Epoxy Sealed: Yes
Product Information | Resources |
|
|
Specifications |
Product Attribute | Attribute Value |
Coil Voltage | 220 VAC |
Contact Configuration | 1A SPST-NO |
Contact Current | 40 A |
Coil Type | Single Side Stable |
Mounting Type | PCB & QC |
Enclosure | Dust Cover |
Insulation System | Class F |
Contact Material | AgSnO2In2O3 |
IP67 Epoxy Sealed | Yes |
Maximum Switching Power | 1,200 W, 10,000 VA |
Maximum Switching Voltage | 110 VDC, 300 VAC |
Initial Contact Resistance | 30m?Max.@ 1A,6VDC |
Service Life | Mechanical 1 x 107 operations Electrical 1 x 105 operations |
Operate Time | 15 msec max. |
Release Time | 10 msec max |
Insulation Resistance | 1,000 M? min. at 500 VDC |
Power Consumption | 2.0 VA |
Dielectric Strength | 50 Hz 1,500 V Between Open Contacts 50 Hz 2,500 V Between Contacts and Coil |
Shock Resistance | 200 m/s2 |
Vibration Resistance | 10 Hz - 55 Hz Double Amplitude 1.5 mm |
Terminal Strength | 10 N |
Solderability | 260°C for 5 seconds |
Operating Temperature | -55°C to 100°C |
Storage Temp. Range | -55°C to 125°C |
Relative Humidity | 85% (at 40°C) |
Material Compliant To | EU RoHS V2, EU REACH V3 |
Series Features |

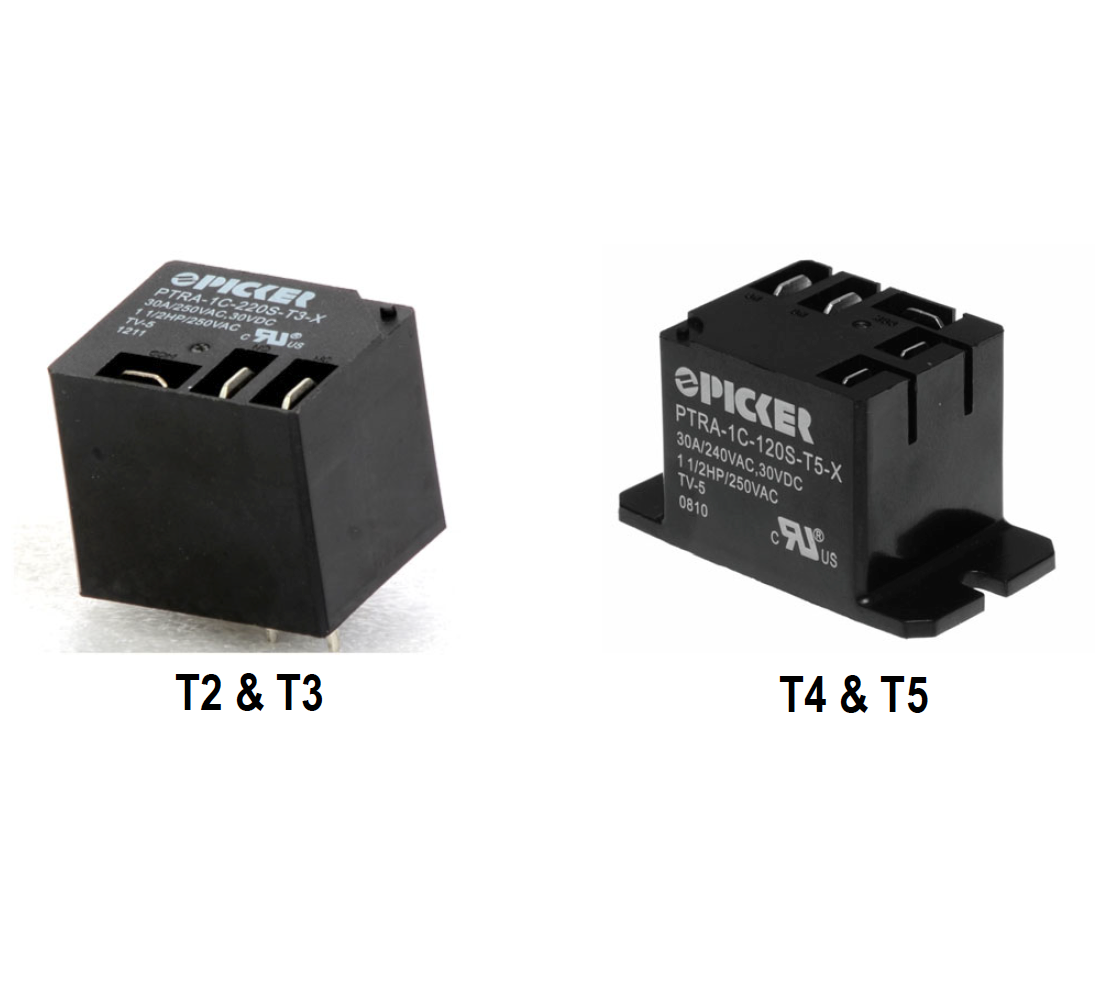

PTRA-T Series 40 Amp Power Relay with AC Coils & Low Case Profile QC Terminals |
Series Description: |
|
