To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Picker Components |
| Manufacturer Product Number | PC835-1A-3S-X |
| Description | Power Relay; 1A SPST-NO; 10 A; 3VDC; Non Latching; Through Hole; PC Pin |
| Datasheet | Download Datasheet |

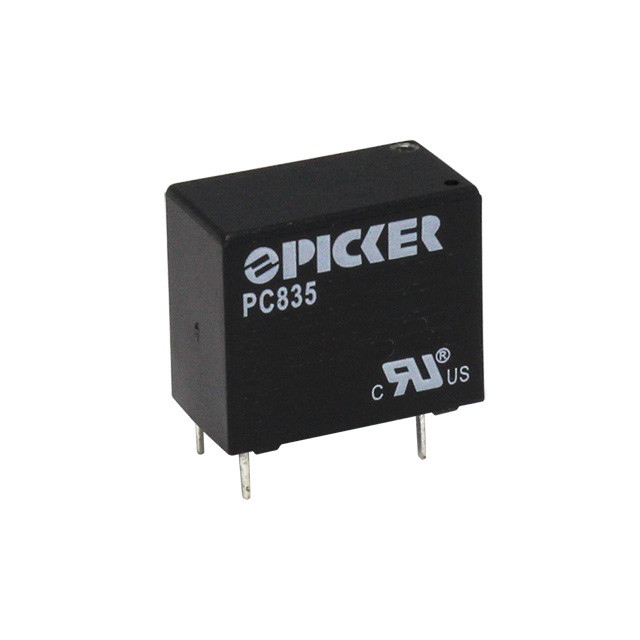

The Picker Components PC835-1A-3S-X is a power relay with 1A SPST-NO contacts rated 10 A, switching up to 277VAC, 30VDC. It runs on a 3VDC coil (non-latching).
Mounting: through hole, PC pin terminals. Construction: sealed. Contact material: AgCdO.
Coil current 150 mA, resistance 20 Ω. Must operate at 2.25 V max and release at 0.15 V min. Operate time 8 ms, release time 5 ms.
Mechanical life 10,000,000 operations, electrical life 100,000 at rated load. Operating temperature -40 to +105 °C. Approvals: UL / cUL (E93379).
| Category | |
| Manufacturer | Picker Components |
| Mounting Type | Through Hole |
| Coil Voltage | 3VDC |
| Contact Configuration | 1A SPST-NO |
| Contact Rating (A) | 10 |
| Switching Voltage | 277VAC, 30VDC |
| Contact Material | AgCdO |
| Coil Current (mA) | 150 |
| Coil Resistance (ohm) | 20 |
| Coil Type | Non Latching |
| Termination Style | PC Pin |
| Must Operate Voltage | 2.25 V |
| Must Drop-Out Voltage | 0.15 V |
| Seal Rating | Sealed |
| Number of Poles | 1 |
| Approvals | UL / cUL (E93379) |
| Operate Time (ms) | 8 |
| Release Time (ms) | 5 |
| Operating Temperature (°C) | -40...+105 |
| Mechanical Life | 10,000,000 cycles (100,000 cycles) |
