Product Description
Description: Power Relays • Coil Voltage: 220 VAC • Contact Configuration: 3C 3PDT • Contact Current: 40 A • Coil Type: Single Side Stable • Mounting : Plain Case • Terminal Type: Quick Connect • Insulation: Class B
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 220 VAC |
| Contact Configuration | 3C 3PDT |
| Contact Current | 40 A |
| Coil Type | Single Side Stable |
| Mounting | Plain Case |
| Terminal Type | Quick Connect |
| Insulation | Class B |
| Maximum Switching Power | 10K VA, 1120W |
| Maximum Switching Voltage | 250VAC, 25VDC |
| Material | AgCdO2 |
| Initial Contact Resistance | 100 m? max. |
| Service Life | Mechanical 1 x 107 operations Electrical 1 x 105 operations |
| Insulation Resistance | 500 M? min. at 500 VDC |
| Dielectric Strength | 1500 Vrms, between contacts 2500 Vrms, between coil & contacts |
| Power Consumption | DC Coil : 2.5W; AC Coil : 5.5VA |
| Solderability | 260°C 5 s ± 0.5 s |
| Operating Temperature | -40oC to 85oC |
| Storage Temperature | -40oC to 85oC |
| Shock Resistance | 10g functional |
| Vibration Resistance | 2mm double amplitude 10~55Hz |
| Series Features |

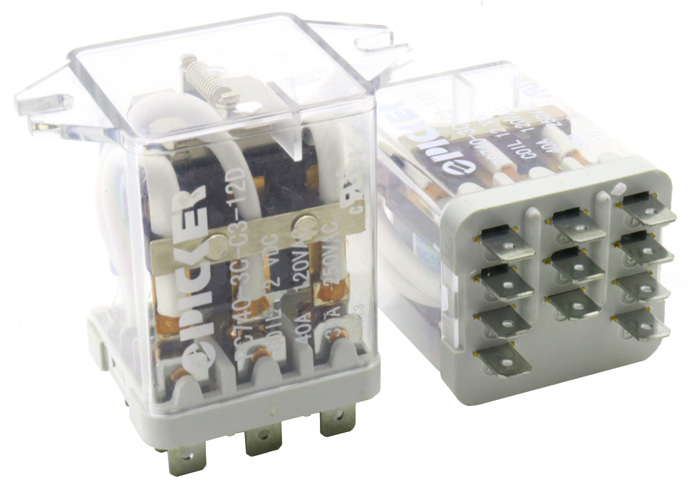

| PC740 Series 40 Amp Power Relay |
| Series Description: |
|
