To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Picker Components |
| Manufacturer Product Number | PC740-2C-C3-24D |
| Description | Power Relay; 2C DPDT; 40 A; 24VDC; Non Latching; Chassis Mount (Flange) |
| Datasheet | Download Datasheet |

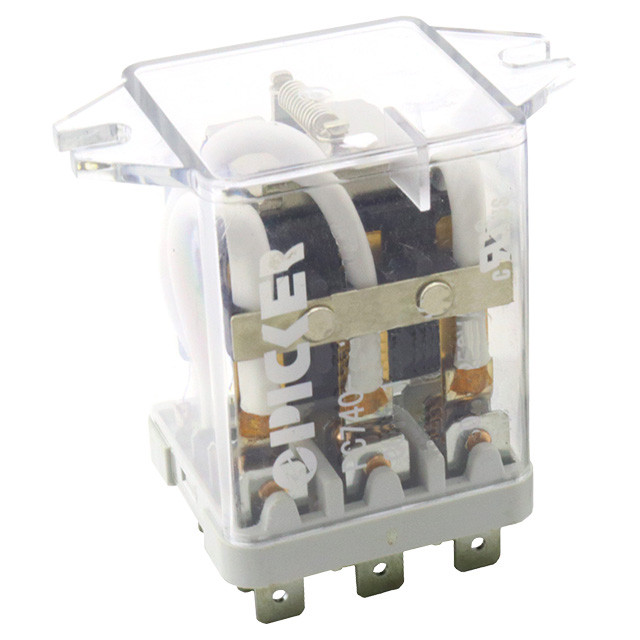

The Picker Components PC740-2C-C3-24D is a power relay with 2C DPDT contacts rated 40 A, switching up to 250VAC, 25VDC. It runs on a 24VDC coil (non-latching).
Mounting: chassis mount (flange), quick connect terminals. Contact material: AgCdO2.
Coil current 104 mA, resistance 230 Ω. Must operate at 19 V max and release at 2 V min.
Mechanical life 10,000,000 operations, electrical life 100,000 at rated load. Operating temperature -40 to +85 °C; storage -40 to +85 °C. Approvals: UL / cUL (E318155).
| Category | |
| Manufacturer | Picker Components |
| Mounting Type | Chassis Mount (Flange) |
| Coil Voltage | 24VDC |
| Contact Configuration | 2C DPDT |
| Contact Rating (A) | 40 |
| Switching Voltage | 250VAC, 25VDC |
| Contact Material | AgCdO2 |
| Coil Current (mA) | 104 |
| Coil Resistance (ohm) | 230 |
| Coil Type | Non Latching |
| Termination Style | Quick Connect |
| Must Operate Voltage | 19 V |
| Must Drop-Out Voltage | 2 V |
| Number of Poles | 2 |
| Approvals | UL / cUL (E318155) |
| Operating Temperature | -40...+85 °C (-40...+85) |
| Mechanical Life | 10,000,000 cycles (100,000 cycles) |
