Product Description
Description: Power Relays • Coil Voltage: 6 VDC • Contact Configuration: 1C SPDT • Contact Current: 20 A • Coil Type: Single Side Stable • Mounting : PC Pin • Enclosure: Dust Cover • Coil Power: 0.450 W • Insulation System: Class F • Contact Material: AgCdO + Gold Plate
| Product Information | | Resources |
| Manufacturer | Picker | | Product Category | Relay | | Product Sub Category | Power Relays | | Series | PC520 Series |
| | |
Product Attribute
| Attribute Value
|
| Coil Voltage | 6 VDC |
| Contact Configuration | 1C SPDT |
| Contact Current | 20 A |
| Coil Type | Single Side Stable |
| Mounting | PC Pin |
| Enclosure | Dust Cover |
| Coil Power | 0.450 W |
| Insulation System | Class F |
| Contact Material | AgCdO + Gold Plate |
| Max Switching Power | 3840 VA |
| Max. Switching Voltage | 250 VAC |
| Maximum Switching Current | 20 A |
| Initial Contact Resistance | 100 milliohms max @ 0.1 A, 6 VDC |
| Service Life | Mechanical 1 x 107 operations
Electrical 1 x 105 operations |
| Operate Time | Less than 15 ms |
| Release Time | Less than 10 ms |
| Insulation Resistance | 1,000 M? min, at 500 VDC |
| Dielectric Strength | 50 Hz 1,000 V, Between Contacts
50 Hz 2,500 V, Between Contact and Coil, Surge Voltage: 4kV |
| Shock Resistance | 100/ms2, 11 ms |
| Power Consumption | 360 mW, 450 mW, 600 mW |
| Vibration Resistance | 10 - 55 Hz, DA 1.0 mm |
| Terminal Strength | 5N |
| Solderability | 260oC for 5 seconds |
| Operating Temperature Class F | - 40 to 105°C |
| Operating Temperature Class B | - 40 to 85°C |
| Operating Temperature | - 40 to 155°C |
| Relative Humidity | 93% at 40°C |

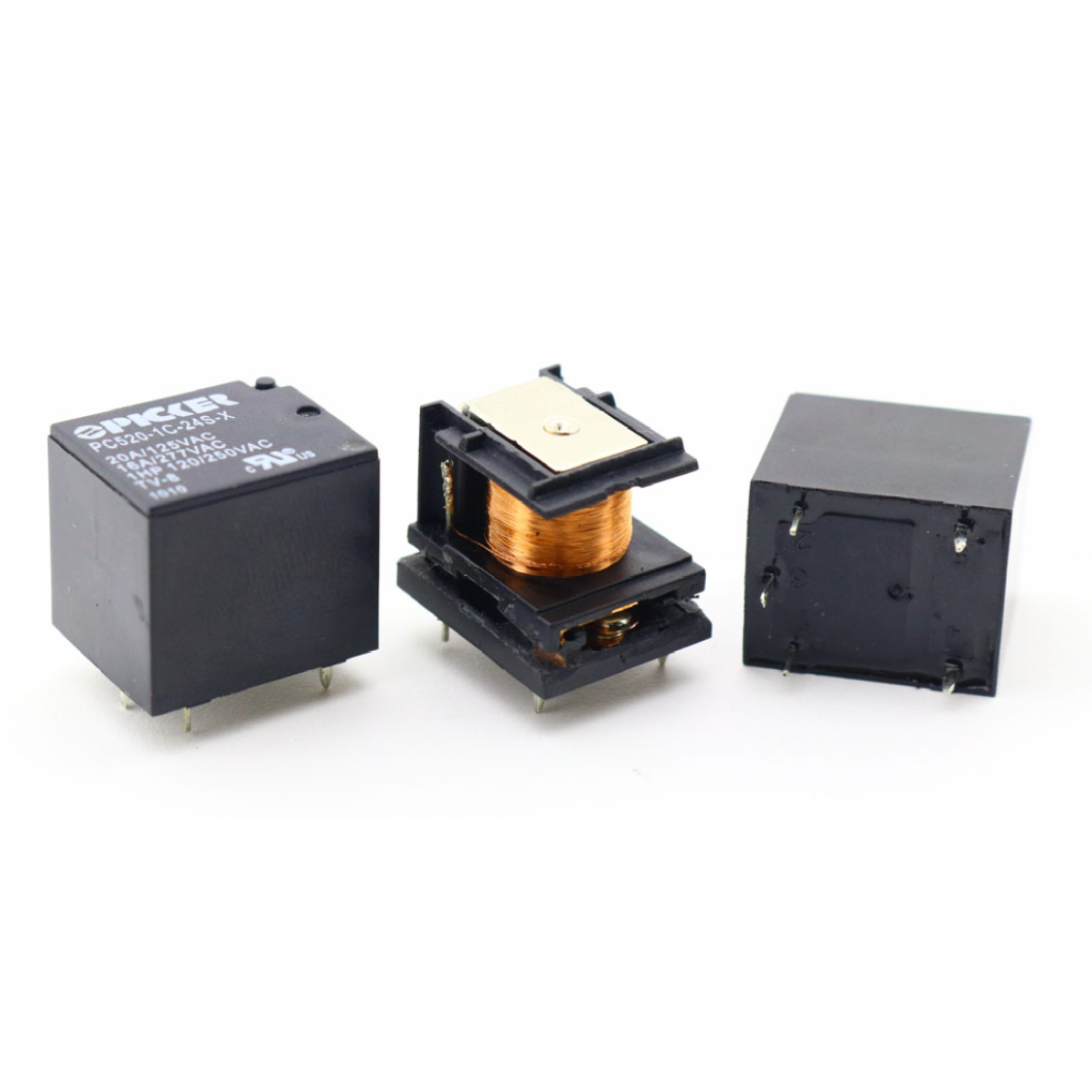

| PC520 Series 20 Amp Subminiature PCB Power Relay |
| Series Description: |
- 20 A at 125 VAC and 16 A at 277 VAC Contact Rating
- 1 HP at 125 VAC and 250 VAC
- 80 Amp In Rush Current, TV-8 Rated at 125 VAC
- Class “F” Insulation Standard
- Popular “Sugar Cube” Footprint
- Sealed, Immersion Cleanable
- RoHS Compliant
|
RoHS Compliant
