Product Description
Description: Power Relays • Coil Voltage: 48 VDC • Contact Configuration: 1A SPST-NO • Contact Current: 20 A • Coil Type: Single Side Stable • Mounting : PC Pin • Enclosure: Sealed • Coil Power: 0.600 W • Insulation System: Class F • Contact Material: AgCdO
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 48 VDC |
| Contact Configuration | 1A SPST-NO |
| Contact Current | 20 A |
| Coil Type | Single Side Stable |
| Mounting | PC Pin |
| Enclosure | Sealed |
| Coil Power | 0.600 W |
| Insulation System | Class F |
| Contact Material | AgCdO |
| Max Switching Power | 3840 VA |
| Max. Switching Voltage | 250 VAC |
| Maximum Switching Current | 20 A |
| Initial Contact Resistance | 100 milliohms max @ 0.1 A, 6 VDC |
| Service Life | Mechanical 1 x 107 operations Electrical 1 x 105 operations |
| Operate Time | Less than 15 ms |
| Release Time | Less than 10 ms |
| Insulation Resistance | 1,000 M? min, at 500 VDC |
| Dielectric Strength | 50 Hz 1,000 V, Between Contacts 50 Hz 2,500 V, Between Contact and Coil, Surge Voltage: 4kV |
| Shock Resistance | 100/ms2, 11 ms |
| Power Consumption | 360 mW, 450 mW, 600 mW |
| Vibration Resistance | 10 - 55 Hz, DA 1.0 mm |
| Terminal Strength | 5N |
| Solderability | 260oC for 5 seconds |
| Operating Temperature Class F | - 40 to 105°C |
| Operating Temperature Class B | - 40 to 85°C |
| Operating Temperature | - 40 to 155°C |
| Relative Humidity | 93% at 40°C |
| Series Features |

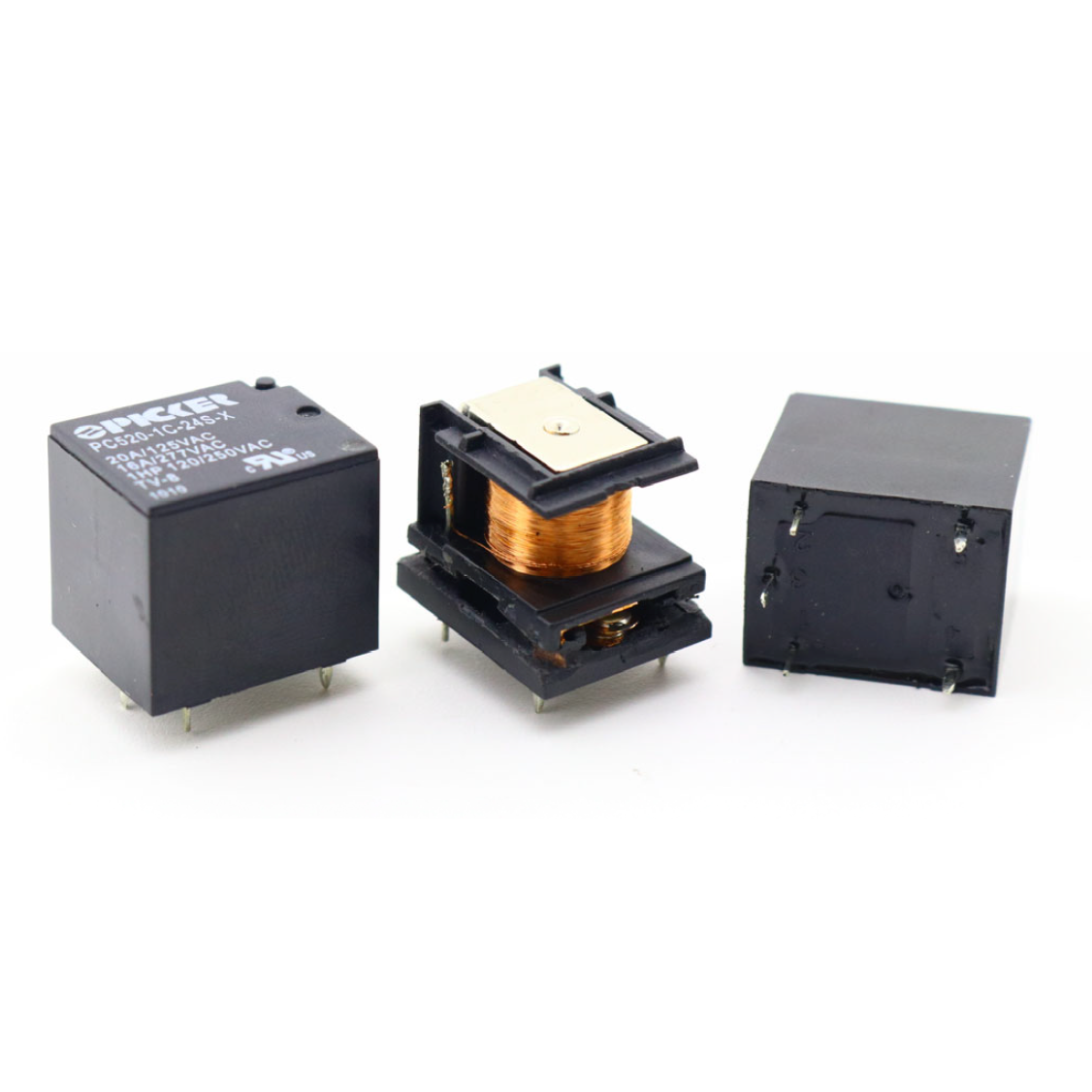

| PC520 Series 20 Amp Subminiature PCB Power Relay |
| Series Description: |
|
