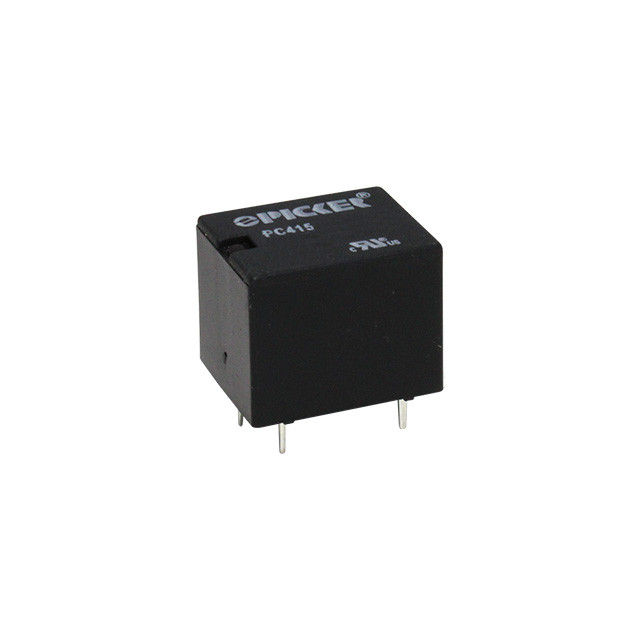

Product Description
Description: Power Relays • Coil Voltage: 12 VDC • Contact Configuration: 1C SPDT • Contact Current: 20 A • Coil Type: Single Side Stable • Mounting : PC Pin • Coil Sensitivity: 800 mW • Enclosure: Sealed • Insulation System: Class B • Contact Material: AgSnO
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 12 VDC |
| Contact Configuration | 1C SPDT |
| Contact Current | 20 A |
| Coil Type | Single Side Stable |
| Mounting | PC Pin |
| Coil Sensitivity | 800 mW |
| Enclosure | Sealed |
| Insulation System | Class B |
| Contact Material | AgSnO |
| Max Switching Power | 420 W, 2500 VA |
| Max. Switching Voltage | 110 VDC, 380 VAC |
| Max Switching Current | 20 A |
| Initial Contact Resistance | 100 milliohms max @ 0.1 A, 6 VDC |
| Service Life | Mechanical 1 x 107 operations Electrical 1 x 105 operations |
| Operate Time | Less than 10 ms |
| Release Time | Less than 5 ms |
| Insulation Resistance | 1,000 M? min, at 500 VDC, 50% RH |
| Dielectric Strength | 1500 Vrms, 1 min. between coil and contacts 750 Vrms, 1 min. between open contacts |
| Shock Resistance | 10 g, 11 ms, functional; 100 g, destructive |
| Vibration Resistance | DA 1.5 mm, 10 - 55 Hz |
| Terminal Strength | 5N |
| Solderability | 235 oC for 3 seconds |
| Operating Temperature | -55 to 85 oC |
| Relative Humidity | 93% (at 40°C) |
| Series Features |
| PC415 Series 10 Amp Subminiature PCB Power Relay |
| Series Description: |
|
