To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Picker Components |
| Manufacturer Product Number | PC415-1A-24S-X |
| Description | Power Relay; 1A SPST-NO; 10 A; 24VDC; Non Latching; Through Hole; PC Pin |
| Datasheet | Download Datasheet |

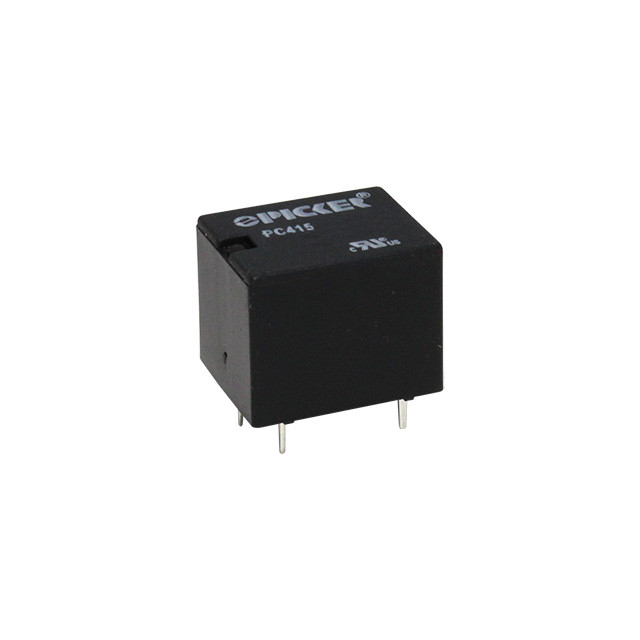

The Picker Components PC415-1A-24S-X is a power relay with 1A SPST-NO contacts rated 10 A, switching up to 380VAC, 110VDC. It runs on a 24VDC coil (non-latching).
Mounting: through hole, PC pin terminals. Construction: sealed. Contact material: AgCdO.
Coil current 15 mA, resistance 1600 Ω. Must operate at 16.8 V max and release at 2.4 V min. Operate time 10 ms, release time 5 ms.
Mechanical life 10,000,000 operations, electrical life 100,000 at rated load. Operating temperature -55 to +85 °C. Approvals: UL / cUL (E86876).
| Category | |
| Manufacturer | Picker Components |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Configuration | 1A SPST-NO |
| Contact Rating (A) | 10 |
| Switching Voltage | 380VAC, 110VDC |
| Contact Material | AgCdO |
| Coil Current (mA) | 15 |
| Coil Resistance (ohm) | 1600 |
| Coil Type | Non Latching |
| Termination Style | PC Pin |
| Must Operate Voltage | 16.8 V |
| Must Drop-Out Voltage | 2.4 V |
| Seal Rating | Sealed |
| Number of Poles | 1 |
| Approvals | UL / cUL (E86876) |
| Operate Time (ms) | 10 |
| Release Time (ms) | 5 |
| Operating Temperature (°C) | -55...+85 |
| Mechanical Life | 10,000,000 cycles (100,000 cycles) |
