To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Picker Components |
| Manufacturer Product Number | PC376-1A-24C-H-X |
| Description | Power Relay; 1A SPST-NO; 16 A; 24VDC; Non Latching; Through Hole; PC Pin |
| Datasheet | Download Datasheet |

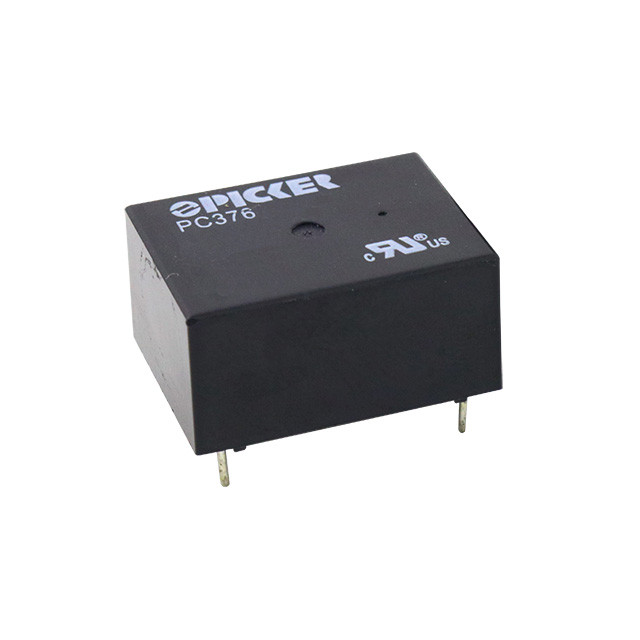

The Picker Components PC376-1A-24C-H-X is a power relay with 1A SPST-NO contacts rated 16 A, switching up to 380VAC, 110VDC. It runs on a 24VDC coil (non-latching).
Mounting: through hole, PC pin terminals. Construction: flux tight. Contact material: AgSnO2. Options on this part: sensitive coil.
Coil current 8.33 mA, resistance 2880 Ω. Must operate at 18 V max and release at 2.4 V min. Operate time 8 ms, release time 5 ms.
Mechanical life 10,000,000 operations, electrical life 100,000 at rated load. Operating temperature -40 to +85 °C; storage -40 to +155 °C. Approvals: UL / cUL (E93379).
| Category | |
| Manufacturer | Picker Components |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Configuration | 1A SPST-NO |
| Contact Rating (A) | 16 |
| Switching Voltage | 380VAC, 110VDC |
| Contact Material | AgSnO2 |
| Coil Current (mA) | 8.33 |
| Coil Resistance (ohm) | 2880 |
| Coil Type | Non Latching |
| Termination Style | PC Pin |
| Must Operate Voltage | 18 V |
| Must Drop-Out Voltage | 2.4 V |
| Seal Rating | Flux Tight |
| Features | Sensitive Coil |
| Number of Poles | 1 |
| Approvals | UL / cUL (E93379) |
| Operate Time (ms) | 8 |
| Release Time (ms) | 5 |
| Operating Temperature | -40...+85 °C (-40...+155) |
| Mechanical Life | 10,000,000 cycles (100,000 cycles) |
