Product Description
Description: Power Relays • Coil Voltage: 12 VDC • Contact Configuration: 1A SPST-NO • Contact Current: 16 A • Coil Type: Single Side Stable • Mounting : PC Pin • Enclosure: Flux Free • Insulation Material: Class B • Coil Sensitivity: Sensitive 200 mW
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 12 VDC |
| Contact Configuration | 1A SPST-NO |
| Contact Current | 16 A |
| Coil Type | Single Side Stable |
| Mounting | PC Pin |
| Enclosure | Flux Free |
| Insulation Material | Class B |
| Coil Sensitivity | Sensitive 200 mW |
| Material | AgCdO |
| Initial Contact Resistance | 50 m? max @ 1 A, 6 VDC |
| Service Life | Mechanical 1 x 107 operations Electrical 1 x 105 operations |
| Operate Time | 10 ms. Max. |
| Release Time | 5 ms Max |
| Insulation Resistance | 100 M? min, at 500 VDC |
| Dielectric Strength | 750 V, 50 Hz, Between Open Contacts 1,500 V, 50HZ, Between Coil and Contacts |
| Power Consumption | 200 mW, 450 mW |
| Shock Resistance | 1000 m/s2 11 ms |
| Vibration Resistance | 10 Hz - 55 Hz Double Amplitude1.5 mm |
| Terminal Strength | 10N |
| Solderability | 260°C for 5 seconds |
| Operating Temperature | -40°C - 85°C Class B -40°C - 125°C Class F |
| Relative Humidity | 85% at 20°C |
| Series Features |

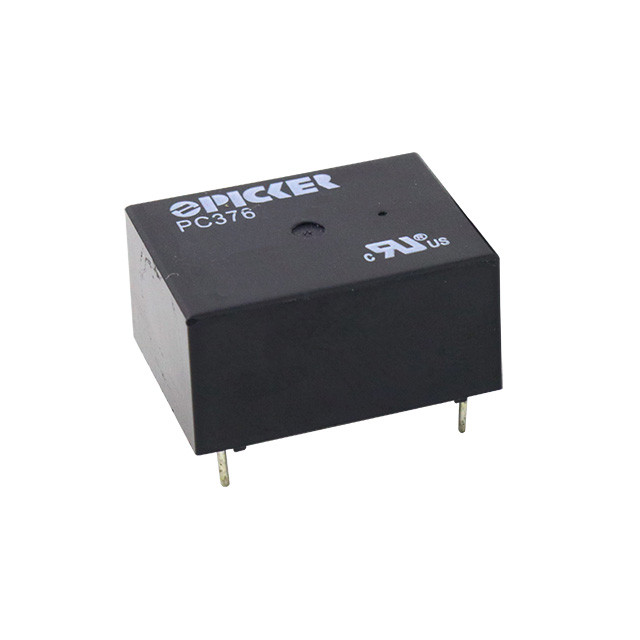

| PC376 Series Subminiature PCB Power Relay |
