To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Picker Components |
| Manufacturer Product Number | PC375L-1C-9S-L2-X |
| Description | Power Relay; 1C SPDT; 16 A; 9VDC; Latching, Dual Coil; Through Hole; PC Pin |
| Datasheet | Download Datasheet |

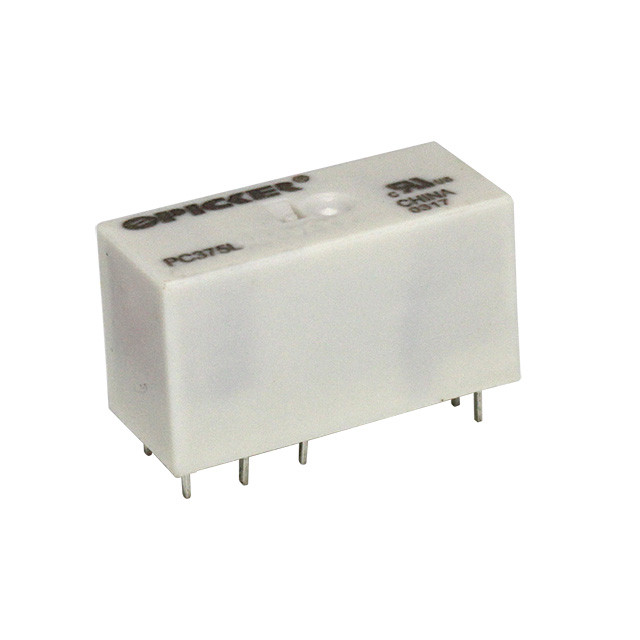

The Picker Components PC375L-1C-9S-L2-X is a latching power relay with 1C SPDT contacts rated 16 A, switching up to 440VAC. It runs on a 9VDC coil (dual-coil latching).
Mounting: through hole, PC pin terminals. Construction: sealed. Contact material: AgSnO2.
Coil current 66.7 mA, resistance 135 Ω. Must operate at 7.2 V max and release at 1.2 V min. Operate time 10 ms, release time 10 ms.
Mechanical life 5,000,000 operations, electrical life 50,000 at rated load. Operating temperature -40 to +85 °C. Approvals: UL / cUL (E86876).
| Category | |
| Manufacturer | Picker Components |
| Mounting Type | Through Hole |
| Coil Voltage | 9VDC |
| Contact Configuration | 1C SPDT |
| Contact Rating (A) | 16 |
| Switching Voltage | 440VAC |
| Contact Material | AgSnO2 |
| Coil Current (mA) | 66.7 |
| Coil Resistance (ohm) | 135 |
| Coil Type | Latching, Dual Coil |
| Termination Style | PC Pin |
| Must Operate Voltage | 7.2 V |
| Must Drop-Out Voltage | 1.2 V |
| Seal Rating | Sealed |
| Number of Poles | 1 |
| Approvals | UL / cUL (E86876) |
| Operate Time (ms) | 10 |
| Release Time (ms) | 10 |
| Operating Temperature (°C) | -40...+85 |
| Mechanical Life | 5,000,000 cycles (50,000 cycles) |
