Product Description
Description: Power Relays • Coil Voltage: 12 VDC • Contact Configuration: 2A DPST-NO • Contact Current: 20 A • Coil Type: Single Side Stable • Mounting : PC Pin • Enclosure: Dust Cover • Version: 4 • Coil Sensitivity: 410 mW • Contact Material: AgSnO2 • Insulation Material: Class F
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 12 VDC |
| Contact Configuration | 2A DPST-NO |
| Contact Current | 20 A |
| Coil Type | Single Side Stable |
| Mounting | PC Pin |
| Enclosure | Dust Cover |
| Version | 4 |
| Coil Sensitivity | 410 mW |
| Contact Material | AgSnO2 |
| Insulation Material | Class F |
| Initial Contact Resistance | 50 m? max @ 1 A, 6 VDC |
| Service Life | Mechanical 1 x 107 operations Electrical 1 x 105 operations |
| Operate Time | 15 ms. Max. |
| Release Time | 8 ms Max |
| Insulation Resistance | 1,000 M? min, at 500 VDC, 50% RH |
| Dielectric Strength | 5,000 V 50 HZ between coil and contacts 1,000 V 50 HZ between open contacts |
| Power Consumption | 410 mW |
| Shock Resistance | 10 g, 11 ms, functional; 100 g, destructive |
| Vibration Resistance | 10 Hz - 55 Hz DA 2.0 mm |
| Terminal Strength | 10N |
| Solderability | 260°C for 5 seconds |
| Operating Temperature Range | Class F Material: -40°C to 85°C |
| Relative Humidity | 85% (at 40°C) |
| Series Features |

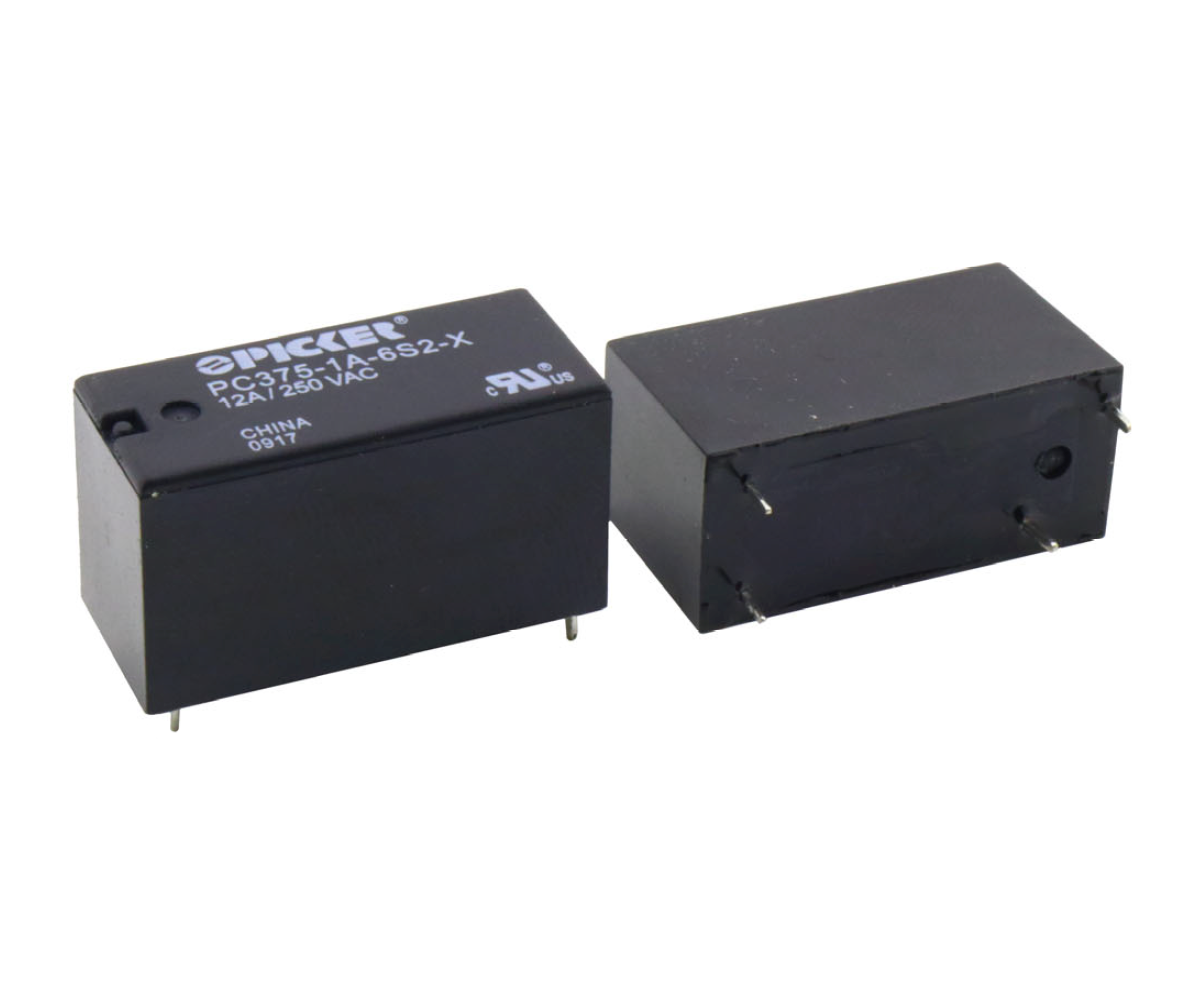

| PC375 Series Low Profile PCB Power Relay |
| Series Description: |
|
