Product Description
Description: Power Relays • Coil Voltage: 12 VDC • Contact Configuration: 1C SPDT • Contact Current: 12 A • Coil Type: Single Side Stable • Mounting : PC Pin • Enclosure: Sealed • Insulation System: Class B (125° C) • Coil Sensitivity: Standard .45 W
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 12 VDC |
| Contact Configuration | 1C SPDT |
| Contact Current | 12 A |
| Coil Type | Single Side Stable |
| Mounting | PC Pin |
| Enclosure | Sealed |
| Insulation System | Class B (125° C) |
| Coil Sensitivity | Standard .45 W |
| Operate Time | 8 ms. Max |
| Release Time | 4 ms. Max |
| Insulation Resistance | 1,000 M? min. @ 500 VDC, 50% RH |
| Dielectric Strength | 2,500 Vrms, 1 min. between Coil and Contacts 4,000 Vrms, 1 min. Between Coil and Contacts 1,000 Vrms, 1 min. between open Contacts |
| Shock Resistance | 10 g, 11ms, functional; 100g, destructive |
| Material | AgCdO (Silver Cadmium Oxide) |
| Initial Contact Resistance | 100 m? max @ 0.1A, 6 VDC |
| Service Life | Mechanical 1 x 107 operations Electrical 1 x 105 operations |
| Vibration Resistance | DA 1.5 mm, 10 - 55 Hz |
| Solderability | 255° C ± 2°C, 3 s ± 0.5 s |
| Power Consumption | .45 W Standard Coil, .36 W Sensitive Coil |
| Ambient Temperature Range | -40° to 85° C, -40° to 130° C Storage |
| Series Features |

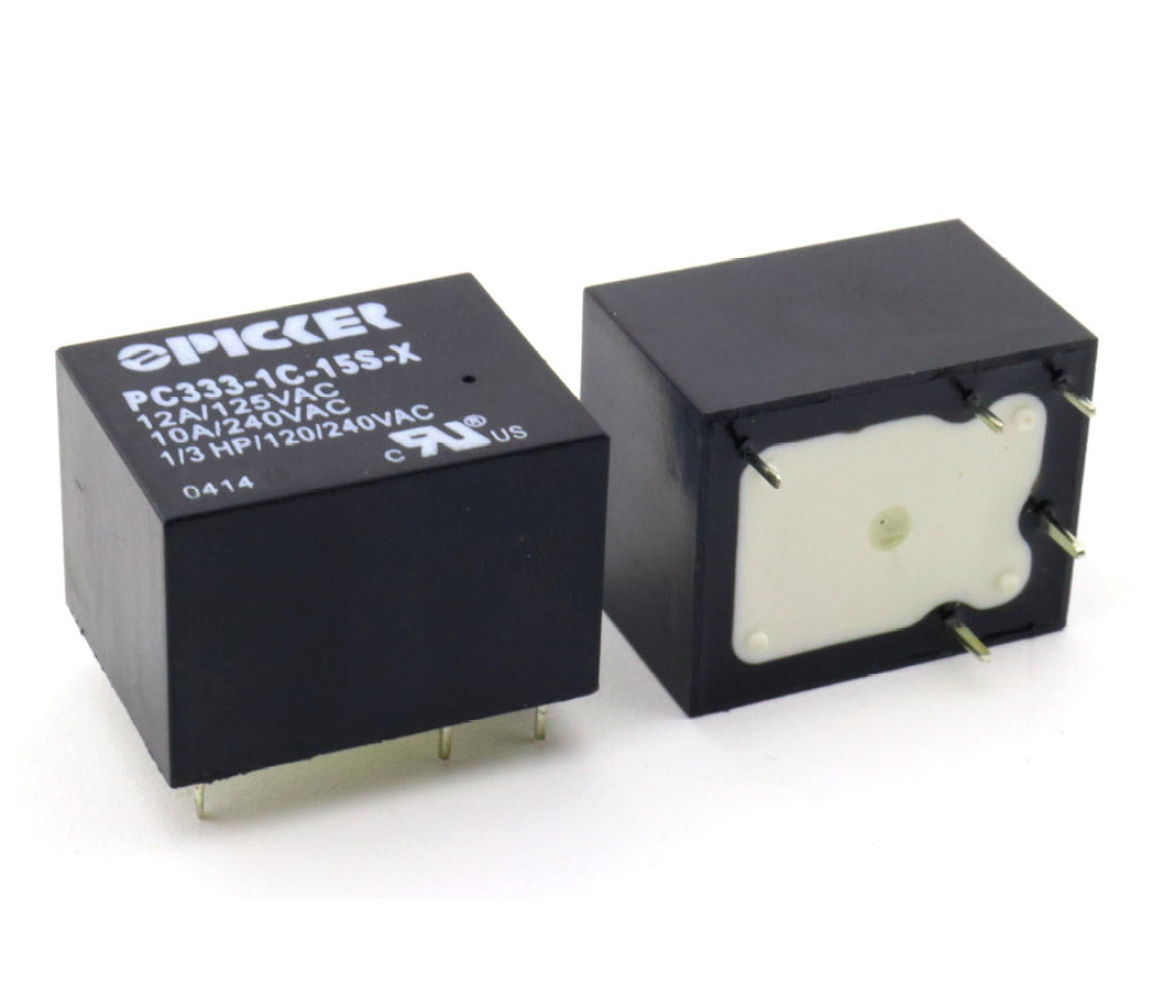

| PC333 Series 12 Amp Subminiature PCB Power Relay |
| Series Description: |
|
