Product Description
Description: Power Relays • Coil Voltage: 12 VDC • Contact Configuration: 1C SPDT • Contact Current: 12 A • Coil Type: Single Side Stable • Mounting : PC Pin • Enclosure: Flux Free • Insulation System: Class B (125° C) • Coil Sensitivity: Standard .45 W
Product Information Resources
Manufacturer Picker Product Category Relay Product Sub Category Power Relays Series PC333 Series
Product Attribute Attribute Value Coil Voltage 12 VDC Contact Configuration 1C SPDT Contact Current 12 A Coil Type Single Side Stable Mounting PC Pin Enclosure Flux Free Insulation System Class B (125° C) Coil Sensitivity Standard .45 W Operate Time 8 ms. Max Release Time 4 ms. Max Insulation Resistance 1,000 M? min. @ 500 VDC, 50% RH Dielectric Strength 2,500 Vrms, 1 min. between Coil and Contacts Shock Resistance 10 g, 11ms, functional; 100g, destructive Material AgCdO (Silver Cadmium Oxide) Initial Contact Resistance 100 m? max @ 0.1A, 6 VDC Service Life Mechanical 1 x 107 operations5 operations Vibration Resistance DA 1.5 mm, 10 - 55 Hz Solderability 255° C ± 2°C, 3 s ± 0.5 s Power Consumption .45 W Standard Coil, .36 W Sensitive Coil Ambient Temperature Range -40° to 85° C, -40° to 130° C Storage

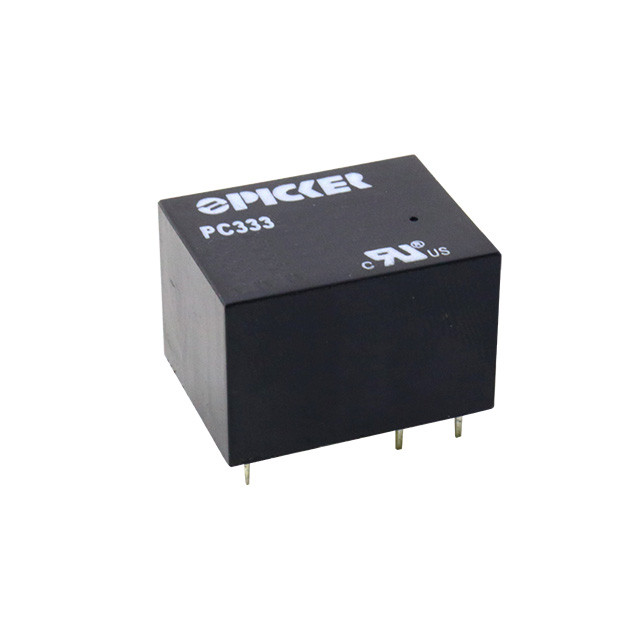

PC333 Series 12 Amp Subminiature PCB Power Relay Series Description:
12 Amp Continuous Contact Capacity
1 Form A, 1 Form C Contact Forms
2.5 KV Dielectric Strength Between Coil and Contacts 4 KV Dielectric HD Version
Sensitive Coil Available
Meets UL 873 Spacing
Sealed, Immersion Cleanable
Lead Free & RoHS Compliant
