Product Description
Description: Power Relays • Coil Voltage: 12 VDC • Contact Configuration: 1A SPST-NO • Contact Current: 12 A • Coil Type: Single Side Stable • Mounting : PC Pin • Enclosure: Sealed • Insulation System: Class F (155° C) • Coil Sensitivity: Standard .45 W
Product Information Resources
Manufacturer Picker Product Category Relay Product Sub Category Power Relays Series PC333 Series
Product Attribute Attribute Value Coil Voltage 12 VDC Contact Configuration 1A SPST-NO Contact Current 12 A Coil Type Single Side Stable Mounting PC Pin Enclosure Sealed Insulation System Class F (155° C) Coil Sensitivity Standard .45 W Operate Time 8 ms. Max Release Time 4 ms. Max Insulation Resistance 1,000 M? min. @ 500 VDC, 50% RH Dielectric Strength 2,500 Vrms, 1 min. between Coil and Contacts Shock Resistance 10 g, 11ms, functional; 100g, destructive Material AgCdO (Silver Cadmium Oxide) Initial Contact Resistance 100 m? max @ 0.1A, 6 VDC Service Life Mechanical 1 x 107 operations5 operations Vibration Resistance DA 1.5 mm, 10 - 55 Hz Solderability 255° C ± 2°C, 3 s ± 0.5 s Power Consumption .45 W Standard Coil, .36 W Sensitive Coil Ambient Temperature Range -40° to 85° C, -40° to 130° C Storage

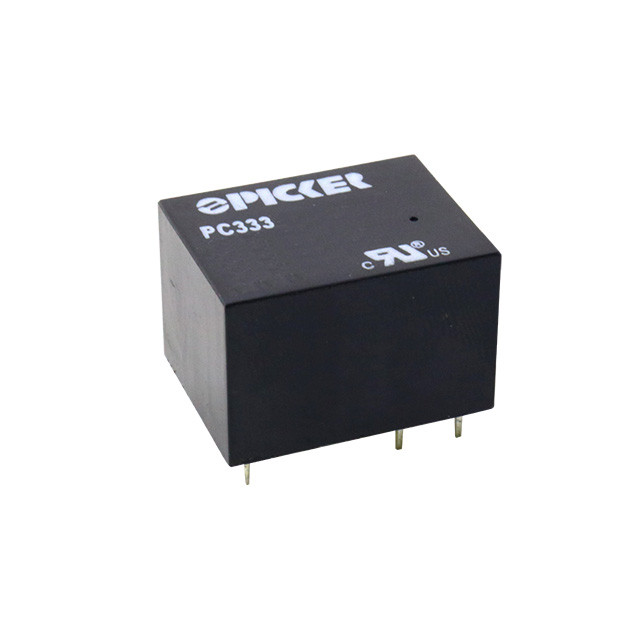

PC333 Series 12 Amp Subminiature PCB Power Relay Series Description:
12 Amp Continuous Contact Capacity
1 Form A, 1 Form C Contact Forms
2.5 KV Dielectric Strength Between Coil and Contacts 4 KV Dielectric HD Version
Sensitive Coil Available
Meets UL 873 Spacing
Sealed, Immersion Cleanable
Lead Free & RoHS Compliant
