Product Description

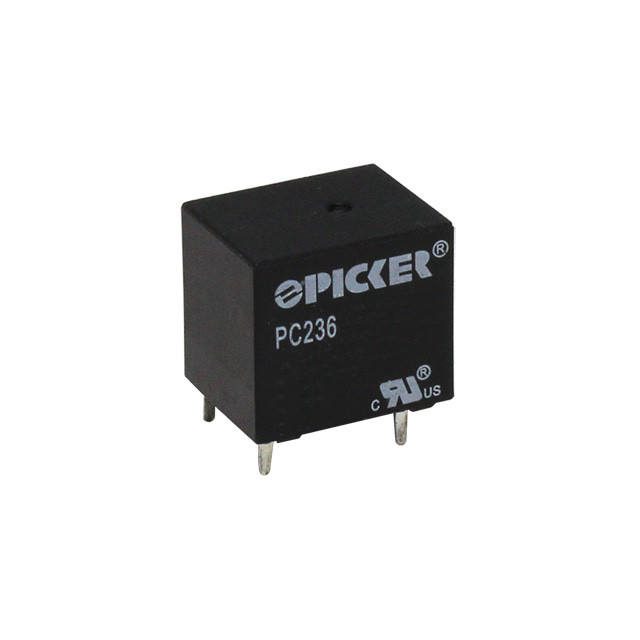

Description: Power Relays • Coil Voltage: 12 VDC • Contact Configuration: 1C SPDT • Contact Current: 20 A • Coil Type: Single Side Stable • Mounting : PC Pin • Enclosure: Sealed • Coil Power: 0.8W • Insulation System: Class B (125oC)
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 12 VDC |
| Contact Configuration | 1C SPDT |
| Contact Current | 20 A |
| Coil Type | Single Side Stable |
| Mounting | PC Pin |
| Enclosure | Sealed |
| Coil Power | 0.8W |
| Insulation System | Class B (125oC) |
| Maximum Switching Power | 280W, 1200VA |
| Maximum Switching Voltage | 277VAC, 48VDC |
| Maximum Switching Current | 20A |
| Material | AgSnO2 |
| Initial Contact Resistance | 50 m? max. |
| Service Life | Mechanical 1 x 107 operations Electrical 1 x 105 operations |
| Insulation Resistance | 100M? min. at 500 VDC |
| Dielectric Strength | 500V rms, between open contacts 500V rms, between coil & contacts |
| Surge Withstand Voltage | 1500V, between open contacts |
| Power Consumption | 0.6W, 0.8W |
| Terminal Strength | 10N |
| Solderability | 260°C 5 s ± 0.5 s |
| Operating Temperature | -40oC to 85oC |
| Storage Temperature | -40oC to 155oC |
| Shock Resistance | 100 m/s2 11 ms |
| Vibration Resistance | 10-40 Hz double amplitude 1.5mm |
| Series Features |
| PC236 Series 10 Amp & 20 Amp Subminiature PCB Relay |
