Product Description
Description: Power Relay • Coil Voltage: 220 VAC • Contact Configuration: 2C DPDT • Contact Current: 10 A • Coil Type: Single Side Stable • Mounting : PC Pin • Case Type: Plain Case • Internal Diode: Yes • Gold Plated Contacts: No • LED Indicator: No • Push-To-Test Button: Yes
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 220 VAC |
| Contact Configuration | 2C DPDT |
| Contact Current | 10 A |
| Coil Type | Single Side Stable |
| Mounting | PC Pin |
| Case Type | Plain Case |
| Internal Diode | Yes |
| Gold Plated Contacts | No |
| LED Indicator | No |
| Push-To-Test Button | Yes |
| Maximum Switching Power | 280W, 2200VA |
| Maximum Switching Voltage | 48VDC, 277VAC |
| Maximum Switching Current | 10A |
| Material | AgCdO |
| Initial Contact Resistance | 50 m? max. |
| Service Life | Mechanical 1 x 107 operations Electrical 1 x 105 operations |
| Insulation Resistance | 100M? min. at 500 VDC |
| Dielectric Strength | 1500V rms, between coil & contacts 1000V rms, between open contacts 1000V rms, between poles |
| Power Consumption | 0.9W, 1.2VA |
| Terminal Strength | 8N QC; 4N PCB |
| Solderability | 260°C 5 s ± 0.5 s |
| Operating Temperature | -40oC to 85oC |
| Storage Temperature | -40oC to 155oC |
| Shock Resistance | 100 m/s2 11 ms |
| Vibration Resistance | 10-40 Hz double amplitude 1.5mm |
| Series Features |

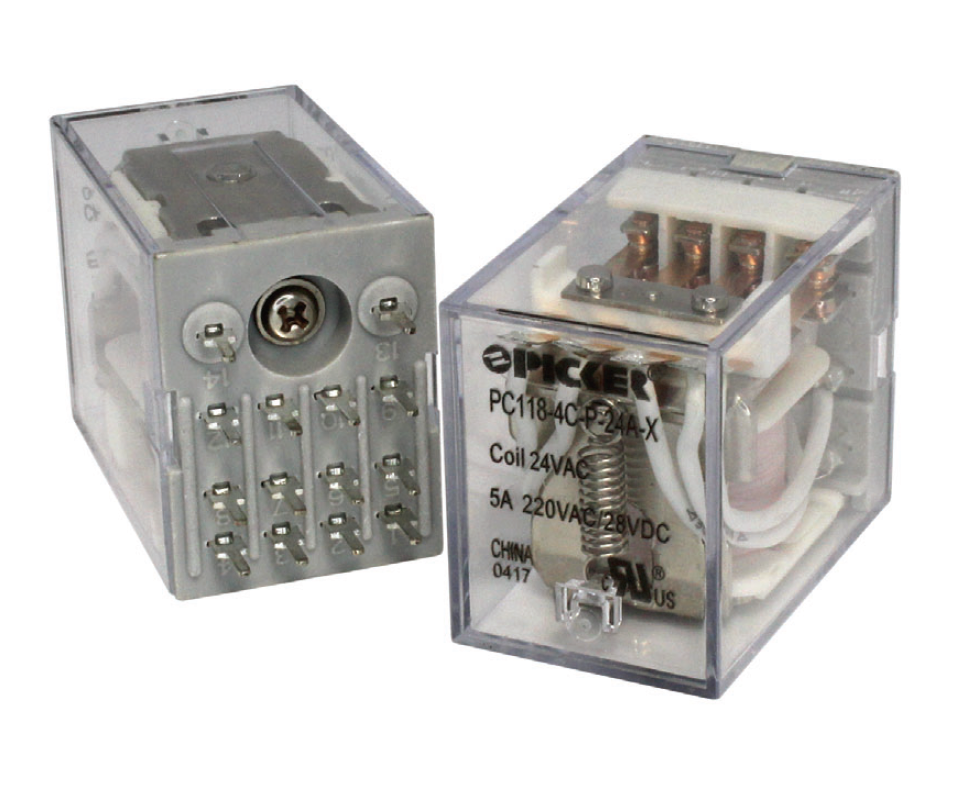

| PC118 Series Miniature 2, 3 or 4 Pole General Purpose Relay |
| Series Description: |
|
