Product Description

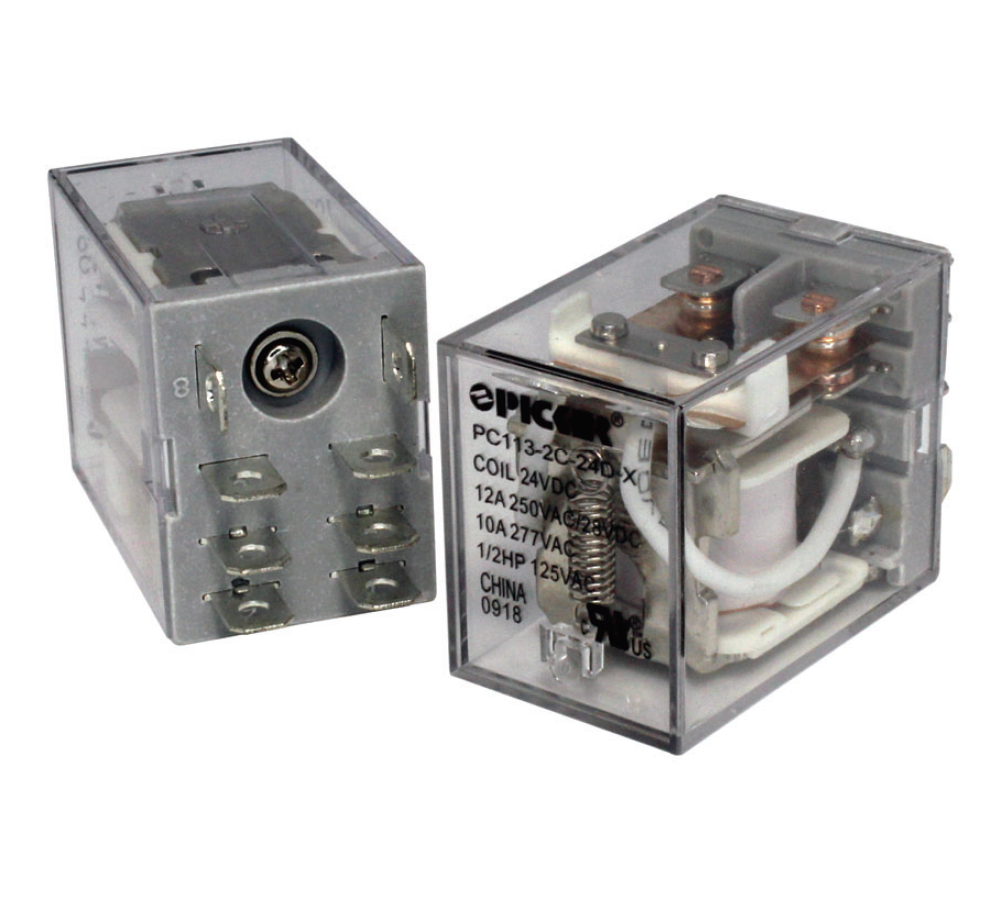

Description: Power Relay • Coil Voltage: 12 VAC • Contact Configuration: 2C DPDT • Contact Current: 20 A • Coil Type: Single Side Stable • Mounting : Solder Lug • Case Type: Flange Mount Case • Internal Diode: Yes • Gold Plated Contacts: Yes • LED Indicator: Yes
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 12 VAC |
| Contact Configuration | 2C DPDT |
| Contact Current | 20 A |
| Coil Type | Single Side Stable |
| Mounting | Solder Lug |
| Case Type | Flange Mount Case |
| Internal Diode | Yes |
| Gold Plated Contacts | Yes |
| LED Indicator | Yes |
| Maximum Switching Power | 560W, 5540VA |
| Maximum Switching Voltage | 48VDC, 300VAC |
| Maximum Switching Current | 20A |
| Material | AgCdO |
| Initial Contact Resistance | 50 m? max. |
| Service Life | Mechanical 1 x 107 operations Electrical 1 x 105 operations |
| Insulation Resistance | 100M? min. at 500 VDC |
| Dielectric Strength | 1500V rms, between coil & contacts 1000V rms, between open contacts 1000V rms, between poles |
| Power Consumption | .9W, 1.2VA |
| Terminal Strength | 8N QC; 4N PCB |
| Solderability | 260°C 5 s ± 0.5 s |
| Operating Temperature | -40oC to 85oC |
| Storage Temperature | -40oC to 155oC |
| Shock Resistance | 100 m/s2 11 ms |
| Vibration Resistance | 10-40 Hz double amplitude 1.27mm |
| Series Features |
| PC113 Series Subminiature 12 & 20 Amp General Purpose Relay |
| Series Description: |
|
