To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Picker Components |
| Manufacturer Product Number | PC113-1C-24A-GL-X |
| Description | Power Relay; 1C SPDT; 20 A; 24VAC; Non Latching; Socketable; Solder Lug |
| Datasheet | Download Datasheet |

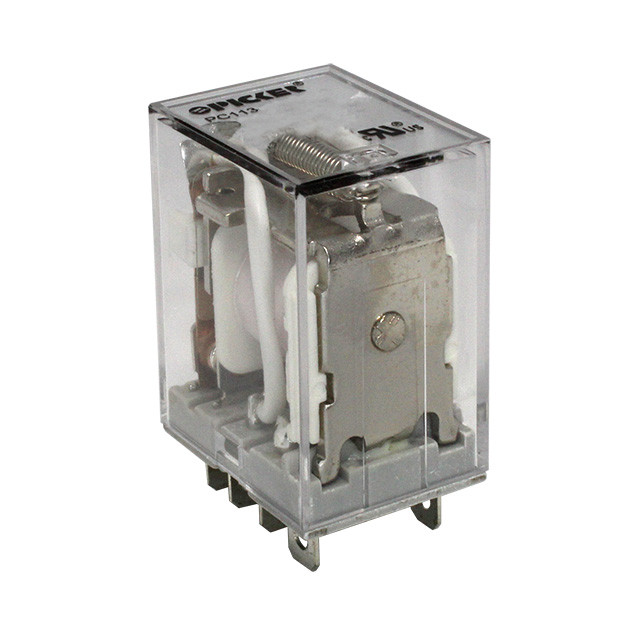

The Picker Components PC113-1C-24A-GL-X is a power relay with 1C SPDT contacts rated 20 A, switching up to 300VAC, 48VDC. It runs on a 24VAC coil (non-latching).
Mounting: socketable, solder lug terminals. Contact material: AgCdO+Au. Options on this part: gold contacts, LED indicator.
Coil resistance 184 Ω. Must operate at 19.2 V max and release at 7.2 V min. Operate time 25 ms, release time 25 ms.
Mechanical life 10,000,000 operations, electrical life 100,000 at rated load. Operating temperature -40 to +85 °C; storage -40 to +155 °C. Approvals: UL, CUL (E86876).
| Category | |
| Manufacturer | Picker Components |
| Mounting Type | Socketable |
| Coil Voltage | 24VAC |
| Contact Configuration | 1C SPDT |
| Contact Rating (A) | 20 |
| Switching Voltage | 300VAC, 48VDC |
| Contact Material | AgCdO+Au |
| Coil Resistance (ohm) | 184 |
| Coil Type | Non Latching |
| Termination Style | Solder Lug |
| Must Operate Voltage | 19.2 V |
| Must Drop-Out Voltage | 7.2 V |
| Features | Gold Contacts, LED Indicator |
| Number of Poles | 1 |
| Approvals | UL, CUL (E86876) |
| Operate Time (ms) | 25 |
| Release Time (ms) | 25 |
| Operating Temperature | -40...+85 °C (-40...+155) |
| Mechanical Life | 10,000,000 cycles (100,000 cycles) |
