Description: Automotive Relays • Coil Voltage: 24 VDC • Contact Configuration: 1B SPST-NC • Contact Current: 45 A • Coil Type: Single Side Stable • Mounting : PC Pins • Enclosure: Flux Tight • Footprint: US (Narrow) • Coil Sensitivity: Standard Pull In • Contact Material: AgSnOInO
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 24 VDC |
| Contact Configuration | 1B SPST-NC |
| Contact Current | 45 A |
| Coil Type | Single Side Stable |
| Mounting | PC Pins |
| Enclosure | Flux Tight |
| Footprint | US (Narrow) |
| Coil Sensitivity | Standard Pull In |
| Contact Material | AgSnOInO |
| Maximum Switching Power | 630 W, 3,600 VAC |
| Maximum Switching Voltage | 75 VDC, 380 VAC |
| Minimum Load | 0.1 A @ 6 VDC |
| Initial Contact Resistance | 30 m? Max @ 0.1A, 6VDC |
| Service Life | Mechanical 1 x 107 operations Electrical 1 x 105 operations |
| Operate Time | 5 msec max. |
| Release Time | 3 msec max |
| Insulation Resistance | 100 M? Min at 500VDC, 50%RH |
| Dielectric Strength | 500 V 50 Hz Between Contacts 750 V 50 Hz Between Contact and Coils |
| Shock Resistance | 20 g, 11ms, functional; 200 g, destructive |
| Vibration Resistance | 10 Hz - 40 Hz Double Amplitude 1.27 mm |
| Coil Power Consumption | 1.9 W (6V, 9V Coil Voltages) 1.6 W (12V, 18V, 24V Coil Voltages) |
| Solderability | 260°C for 5 seconds |
| Operating Temperature | - 40°C to 125°C |
| Storage Temperature | - 40°C to 155°C |
| Series Features |

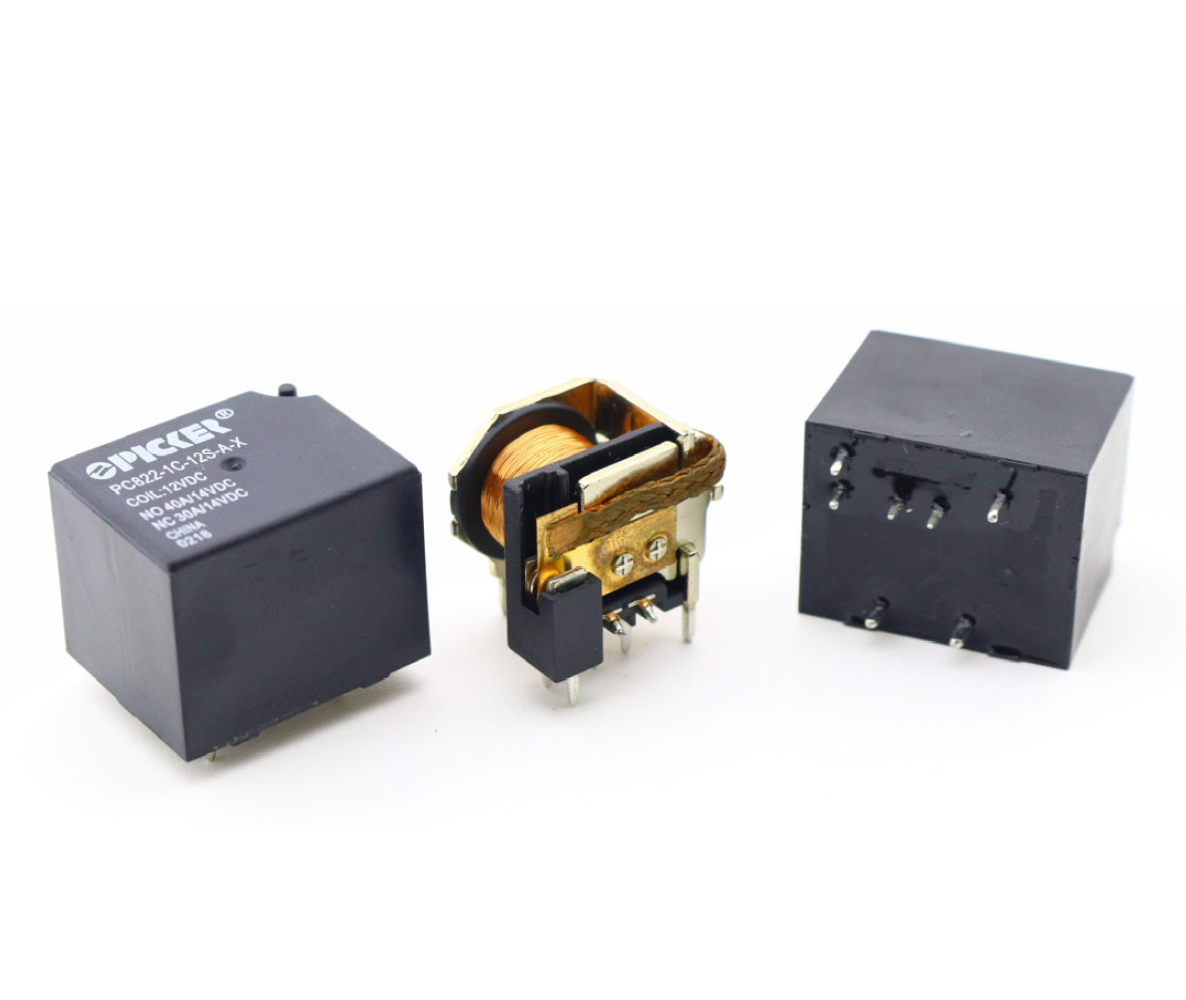

| PC822 Series 45 Amp Miniature Automotive PCB Relay |
