To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Picker Components |
| Manufacturer Product Number | PC822-1A-12-E-X |
| Description | Automotive Relay; 1A SPST-NO; 45 A; 12VDC; Non Latching; Through Hole; PC Pin |
| Datasheet | Download Datasheet |

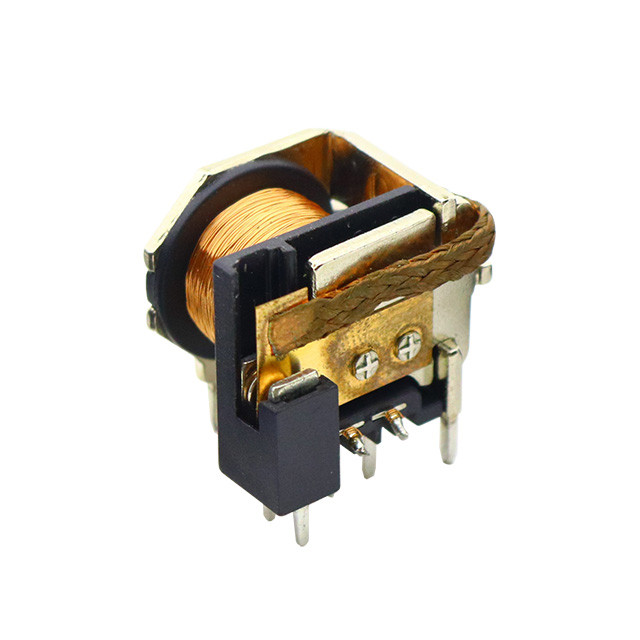

The Picker Components PC822-1A-12-E-X is an automotive relay with 1A SPST-NO contacts rated 45 A, switching up to 380VAC, 75VDC. It runs on a 12VDC coil (non-latching).
Mounting: through hole, PC pin terminals. Construction: open frame. Contact material: AgSnOInO. Options on this part: european footprint (wide).
Coil current 133 mA. Must operate at 8.4 V max and release at 1.2 V min. Operate time 5 ms, release time 3 ms.
Contact resistance max. 30 mΩ. Mechanical life 10,000,000 operations, electrical life 100,000 at rated load. Operating temperature -40 to +125 °C; storage -40 to +155 °C.
| Category | |
| Manufacturer | Picker Components |
| Contact Configuration | 1A SPST-NO |
| Coil Voltage | 12VDC |
| Contact Rating (A) | 45 |
| Switching Voltage | 380VAC, 75VDC |
| Termination Style | PC Pin |
| Mounting Type | Through Hole |
| Seal Rating | Open Frame |
| Coil Type | Non Latching |
| Contact Material | AgSnOInO |
| Contact Resistance | Max. 30 mΩ |
| Coil Current (mA) | 133 |
| Must Operate Voltage | 8.4 V |
| Must Drop-Out Voltage | 1.2 V |
| Coil Suppression | None |
| Operate Time (ms) | 5 |
| Release Time (ms) | 3 |
| Operating Temperature | -40...+125 (-40...+155) |
| Mechanical Life | 10,000,000 cycles (100,000 cycles) |
| Number of Poles | 1 |
| Features | European Footprint (Wide) |
