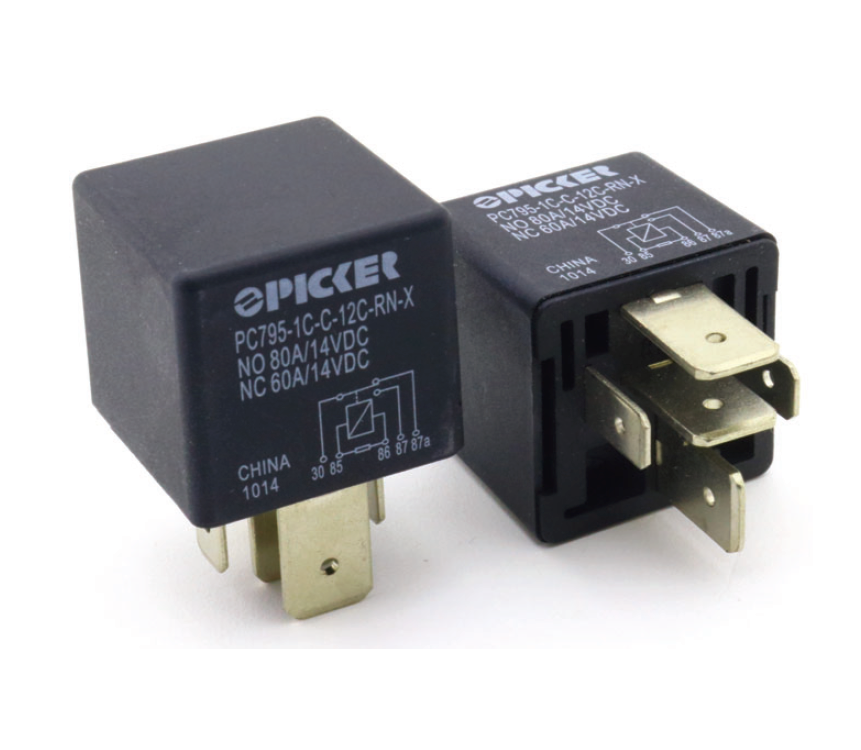

  • Picker PC795-1C-C2-24S1-R-X Automotive Relays

    • To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.

    PC795-1C-C2-24S1-R-X

    Manufacturer Picker Components
    Manufacturer Product Number PC795-1C-C2-24S1-R-X

    This item is out of stock. Please submit an RFQ or call 800-526-5376 for pricing and delivery.

    This item is subject to a Tariff Surcharge of 45% that will be added to your cart during check-out.

    Product Description

    Description: Automotive Relays • Coil Voltage: 24 VDC • Contact Configuration: 1C SPDT • Contact Current: 80 A • Coil Type: Single Side Stable • Mounting : Plug-In with Metal Bracket • Enclosure: Flux Tight • Coil Power: 1.8W • Parallel Component: None • Terminal Plating: PC Pin

          Product Information       Resources
    ManufacturerPicker
    Product Category Relays
    Product Sub Category Automotive Relays
    SeriesPC795 Series

      Download Datasheet

      RoHS Compliant
          Specifications
    Product Attribute
    		Attribute Value
    Coil Voltage24 VDC
    Contact Configuration1C SPDT
    Contact Current80 A
    Coil TypeSingle Side Stable
    Mounting Plug-In with Metal Bracket
    EnclosureFlux Tight
    Coil Power1.8W
    Parallel ComponentNone
    Terminal PlatingPC Pin
    Maximum Switching Power1,120 W
    Maximum Switching Voltage75 VDC
    MaterialAgSnO2In2O3
    Initial Contact Resistance30 m? max.
    Service LifeMechanical 1 x 107 operations
    Electrical 1 x 105 operations
    Insulation Resistance100 M? Min @ 500VDC
    Dielectric Strength500 Vrms, 50 Hz, between contacts
    500 Vrms, 50 Hz, between coil & contacts
    Power Consumption1.8W, 2.3W
    Terminal Strength8N quick connect, 4N PCB pins
    Solderability260°C 5 s ± 0.5 s
    Operating Temperature-40°C to 125°C
    Storage Temperature-40°C to 155°C
    Shock Resistance174 m/s2<.sup> 11 ms
    Vibration Resistance10-40Hz; 1.5mm double amplitude
          Series Features
    PC795 Automotive Plug-In / PCB Maxi ISO Relay
    Series Description:
    • 1A and 1C Contact Forms
    • 80 Amps @ 14VDC Continuous Carry
    • Compatible with Socket SC795
    • Suitable for Automotive Accessories
    • PC Terminal and Quick Connect Mounting Options
