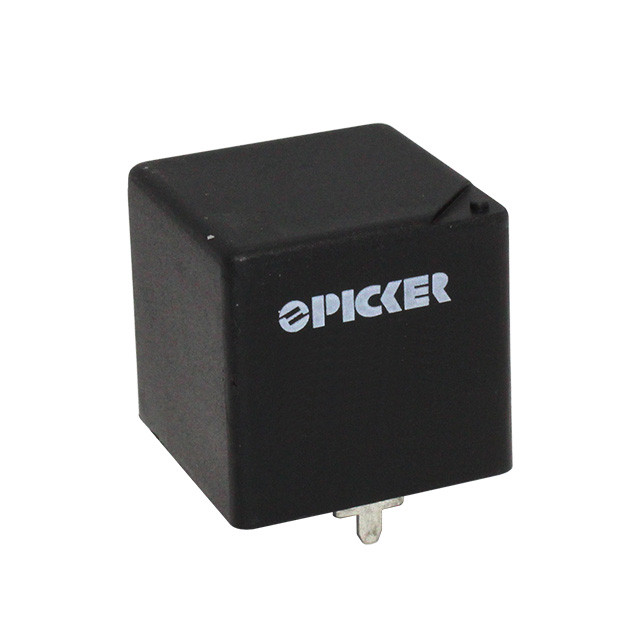

Product Description
Description: Automotive Relays • Coil Voltage: 12 VDC • Contact Configuration: 1C SPDT • Contact Current: 35 A • Coil Type: Single Side Stable • Mounting : PC Pins • Enclosure: Dust Cover • Parallel Component: None • Terminal Plating: PC version
Product Information | Resources |
|
|
Specifications |
Product Attribute | Attribute Value |
Coil Voltage | 12 VDC |
Contact Configuration | 1C SPDT |
Contact Current | 35 A |
Coil Type | Single Side Stable |
Mounting | PC Pins |
Enclosure | Dust Cover |
Parallel Component | None |
Terminal Plating | PC version |
Maximum Switching Power | 1,120 W |
Maximum Switching Voltage | 75 VDC |
Material | AgSnO2 |
Initial Contact Resistance | 100 m? max. |
Service Life | Mechanical 1 x 107 operations Electrical 1 x 105 operations |
Insulation Resistance | 100 M? Min @ 500VDC |
Dielectric Strength | 500 Vrms, 50 Hz, between contacts 500 Vrms, 50 Hz, between coil & contacts |
Power Consumption | 1.8W |
Terminal Strength | 8N quick connect, 4N PCB pins |
Solderability | 260°C 5 s ± 0.5 s |
Operating Temperature | -40°C to 125°C |
Storage Temperature | -40°C to 155°C |
Shock Resistance | 174 m/s2<.sup> 11 ms |
Vibration Resistance | 10-40Hz; 1.5mm double amplitude |
Series Features |
PC792H Series Automotive Plug-In / PCB Mini ISO Relay |
