Product Description

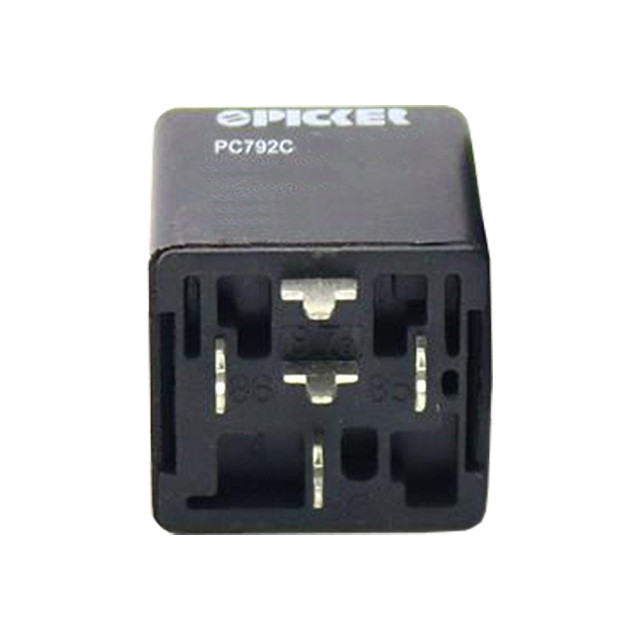

Description: Automotive Relays • Coil Voltage: 24 VDC • Contact Configuration: 1C SPDT • Contact Current: 40 A • Coil Type: Single Side Stable • Mounting : PC Pins • Enclosure: Dust Cover • Coil Power: 1.8W • Parallel Component: Diode • Terminal Plating: PC Pin Version
Product Information | Resources |
|
|
Specifications |
Product Attribute | Attribute Value |
Coil Voltage | 24 VDC |
Contact Configuration | 1C SPDT |
Contact Current | 40 A |
Coil Type | Single Side Stable |
Mounting | PC Pins |
Enclosure | Dust Cover |
Coil Power | 1.8W |
Parallel Component | Diode |
Terminal Plating | PC Pin Version |
Material | AgSnO2 |
Initial Contact Resistance | 100 M? Max @ 0.1 A, 6 VDC |
Service Life | Mechanical 1 x 107 operations Electrical 1 x 105 operations |
Operate Time | 7 msec Typical |
Release Time | 2 msec Typical |
Insulation Resistance | 100 M? Min @ 500VDC |
Dielectric Strength | 50 Hz 500VRMS 1 min. Between Contact and Coil 50 Hz 500VRMS 1 min. Between Contacts |
Power Consumption | 1.8 W Standard, 2.3 W & 2.6 W Optional |
Terminal Strength | 8 N, 4N (PC Type) |
Solderability | 2600C for 5 seconds |
Operating Temperature | -40°C to 125°C |
Storage Temperature | -40°C to 155°C |
Shock Resistance | 147 m/s2<.sup> 11 ms |
Vibration Resistance | 10-40 Hz Double Amplitude 1.5mm |
Relative Humidity | 85% at 40°C |
Flammability | UL-94-VO Meets FMVSS 302 |
Series Features |
PC792C Series 50/40 Amp Automotive Plug-In / PCB Mini ISO Relay |
