Product Description
Description: Automotive Relays • Coil Voltage: 6 VDC • Contact Configuration: 1A SPST-NO • Contact Current: 40 A • Coil Type: Single Side Stable • Mounting : Weatherproof Case with Metal Bracket • Enclosure: Sealed • Coil Power: 1.6W • Parallel Component: Resistor (680 Ohms for 12VDC, 2700 for 24VDC) • Terminal Plating: Nickel Plated Terminals, standard on all Plug-In models
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 6 VDC |
| Contact Configuration | 1A SPST-NO |
| Contact Current | 40 A |
| Coil Type | Single Side Stable |
| Mounting | Weatherproof Case with Metal Bracket |
| Enclosure | Sealed |
| Coil Power | 1.6W |
| Parallel Component | Resistor (680 Ohms for 12VDC, 2700 for 24VDC) |
| Terminal Plating | Nickel Plated Terminals, standard on all Plug-In models |
| Maximum Switching Power | 560 W |
| Maximum Switching Voltage | 75 VDC |
| Material | AgSnO2 |
| Initial Contact Resistance | 30 m? max. |
| Service Life | Mechanical 1 x 107 operations Electrical 1 x 105 operations |
| Insulation Resistance | 100 M? Min @ 500VDC |
| Dielectric Strength | 500 Vrms, 50 Hz, between contacts 750 Vrms, 50 Hz, between coil & contacts |
| Power Consumption | 1.6W, 1.9W, 2.3W |
| Terminal Strength | 8N quick connect, 4N PCB pins |
| Solderability | 260°C 5 s ± 0.5 s |
| Operating Temperature | -40°C to 125°C |
| Storage Temperature | -40°C to 155°C |
| Shock Resistance | 147 m/s2<.sup> 11 ms |
| Vibration Resistance | 10-40Hz; 1.5mm double amplitude |
| Series Features |

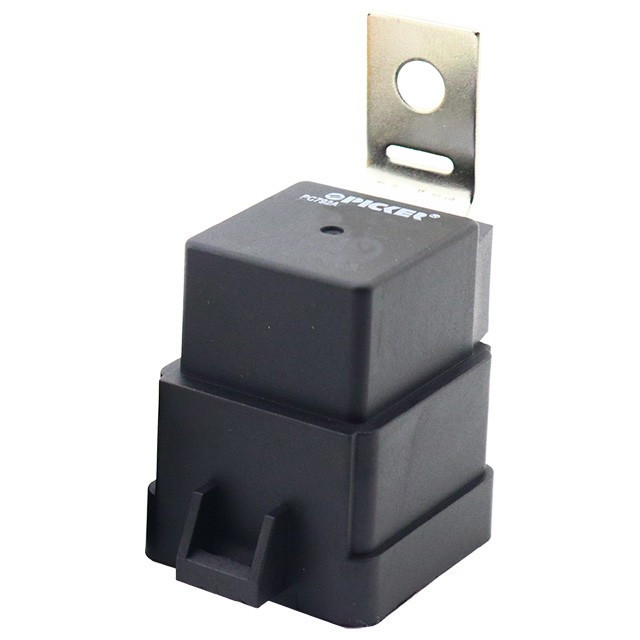

| PC792A Series Automotive Plug-In / PCB Mini ISO Relay |
| Series Description: |
|
