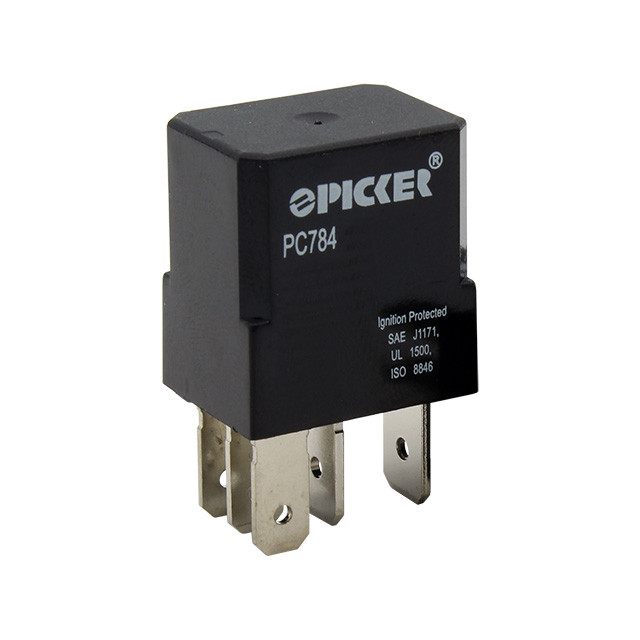

Product Description
Description: Automotive Relays • Coil Voltage: 24 VDC • Contact Configuration: 1A SPST-NO • Contact Current: 40 A • Coil Type: Single Side Stable • Mounting : Plug-In • Enclosure: Sealed • Parallel Component: None
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 24 VDC |
| Contact Configuration | 1A SPST-NO |
| Contact Current | 40 A |
| Coil Type | Single Side Stable |
| Mounting | Plug-In |
| Enclosure | Sealed |
| Parallel Component | None |
| Maximum Switching Power | 560 W |
| Maximum Switching Voltage | 28 VDC |
| Material | AgSnO2 |
| Initial Contact Resistance | 50 m? max. |
| Service Life | Mechanical 1 x 107 operations Electrical 1 x 105 operations |
| Insulation Resistance | 100 M? Min @ 500VDC |
| Dielectric Strength | 500 Vrms, 50 Hz, between contacts 500 Vrms, 50 Hz, between coil & contacts |
| Power Consumption | 1.5 W (12V); 1.8W (24V) |
| Terminal Strength | 8N |
| Solderability | 260°C 5 s ± 0.5 s |
| Operating Temperature | -40°C to 125°C |
| Storage Temperature | -40°C to 155°C |
| Shock Resistance | 100 m/s2<.sup> 11 ms |
| Vibration Resistance | 10-55Hz; 1.5mm double amplitude |
| Series Features |
| PC784 Series Automotive Plug-In Micro ISO Relay |
| Series Description: |
|
